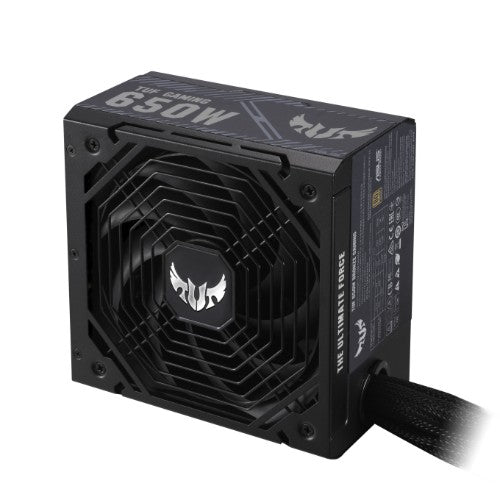

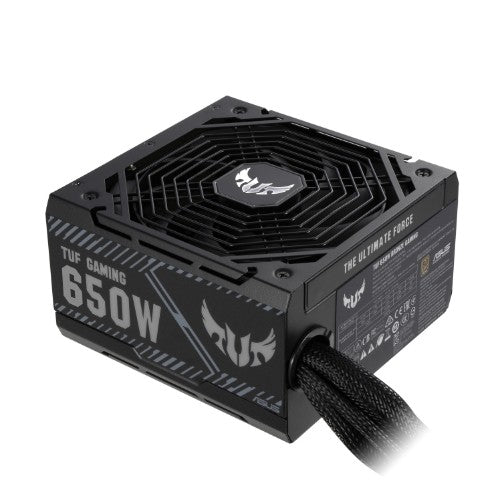

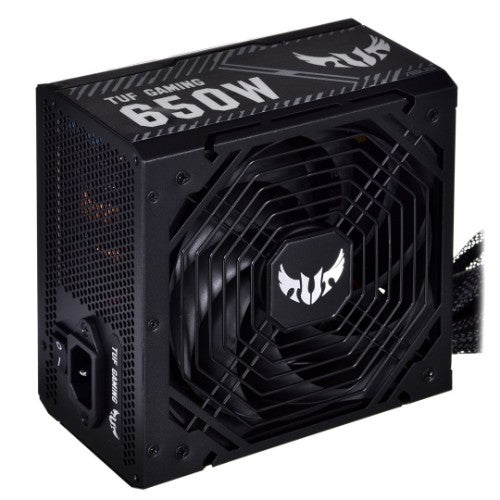

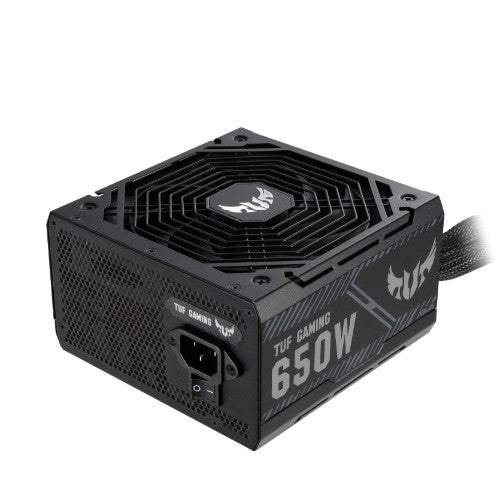

ASUS TUF-GAMING-650B power supply unit 650 W 20+4 pin ATX ATX Black

ATX12V, 650W, 100 - 240 V, 25A, 80Plus Bronze

Key Features

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs
• A protective PCB coating protects against moisture, dust, and extreme temperatures
• An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 0dB technology lets you enjoy light gaming in relative silence
• Sleeved cables leave your rig looking tactically clean
• 80cm 8-pin CPU connector (EPS 12V)

Description

Built For The Long Haul
TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It's the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.

Military−grade Certification
Top marks
All critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.

Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

80 Plus Bronze Certification
Brains and Bronze
The high-quality components used in TUF Gaming power supplies ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification. The efficiency also leads to low temperatures within the PSU, facilitating an even quieter acoustic profile for the 135mm Axial-tech fan.

Axial−tech Fan Design
Better, faster, stronger
Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
0dB Technology
Quiet intelligence
An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
6−year Warranty
Entrenched performance
We're so confident about the reliability of the TUF Gaming series PSUs that we back them with a 6-year worldwide warranty.
Sleeved Cables
Slim-fit
Cables swathed in black sleeving leave your rig looking tactically clean.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	650 W
AC input voltage	100 - 240 V
Input current	25 A
Combined power (+3.3V)	130 W
Combined power (+12V)	612 W
Combined power (+5V)	130 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	51 A
Max output current (+5V)	25 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	400 mm
PCI Express power cable length	60 cm
CPU power cable length	80 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Non-Modular
Certificates
Compliance certificates	RoHS
80 PLUS certification	80 PLUS Bronze
Packaging content
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.06 kg
Packaging data
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
Package weight	2.75 kg
Technical details
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
