ASUS

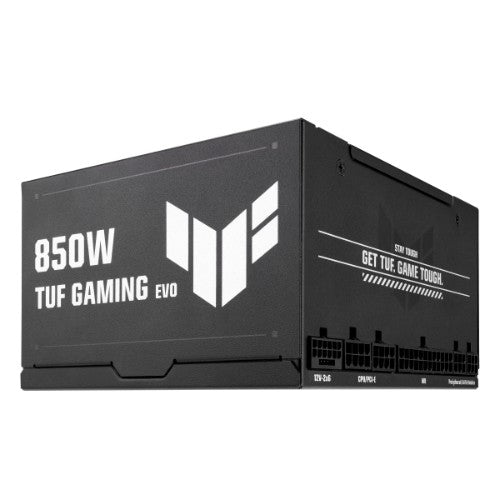

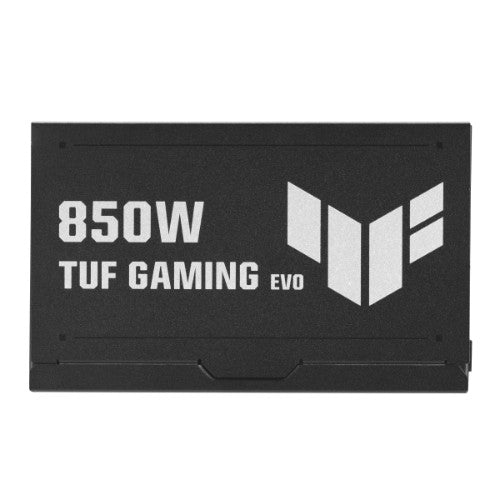

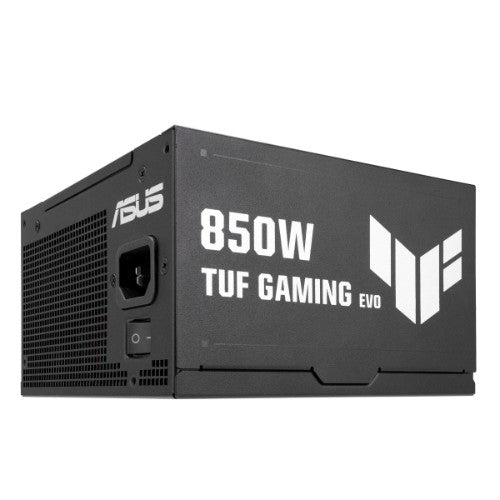

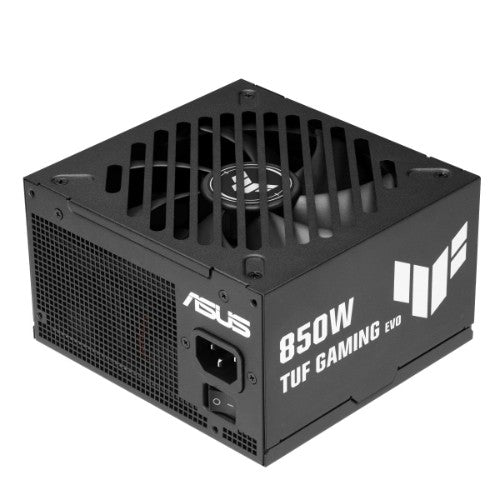

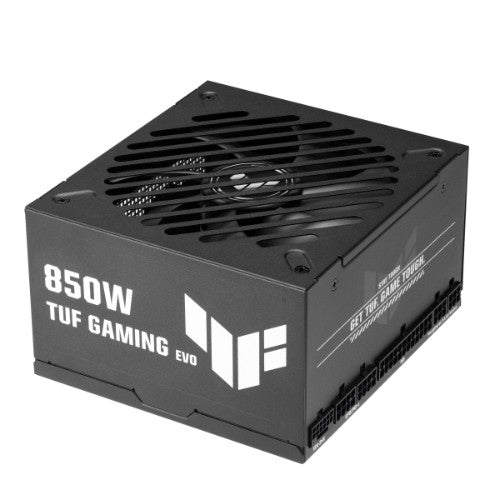

ASUS TUF-GAMING-850G-EVO power supply unit 850 W 20+4 pin ATX ATX Black

SKU 90YE00SA-B0NA00
£95.11
£95.11
Excluding taxes
The TUF Gaming 850W Gold EVO is an efficient, resilient and dependable PSU that’s engineered for the long haul

Key Features

  • Military-grade capacitors provide premium durability.
  • Dual-Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
  • Protective PCB coating protects against moisture, dust, and extreme temperatures.
  • 80 Plus & Cybenetics Gold certified: Japanese capacitors and premium components deliver industry-leading power efficiency.
  • ATX 3.1 Compatible: TUF Gaming Gold EVO series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards.
  • Fully modular etched cables keep your rig neat and tidy.

Description

TUF Gaming Gold EVO Series
Built For The Long Haul
The ASUS TUF Gaming 850W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Specifications

Cooling

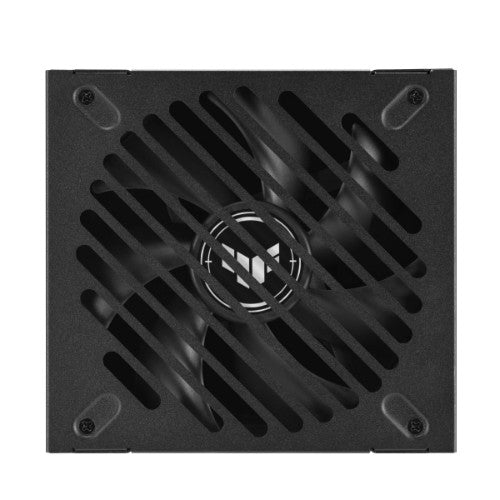

Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Performance

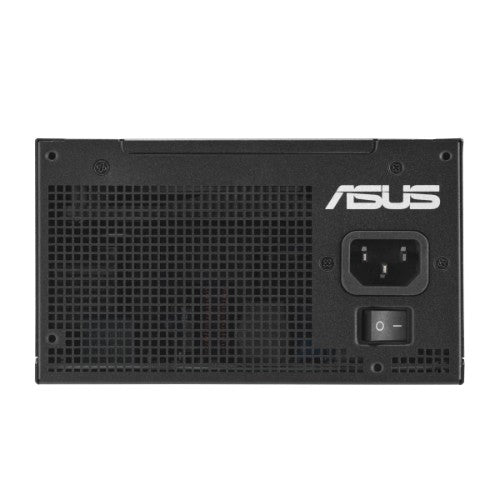

On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
Mean time between failures (MTBF) 120000 h
Bearing technology DBB
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan location Top
Cooling type Active
Power
Total power 850 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (+12V) 850 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 70.83 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power cable length 50 cm
SATA power cable length 400,120 mm
Peripheral (Molex) power cable length 400,120 mm
PCI Express power cable length 50 cm

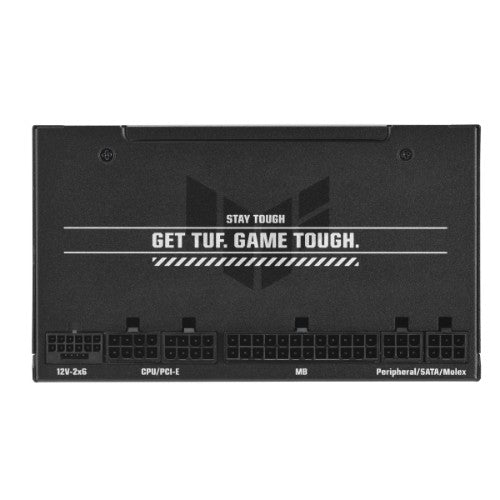

Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 4
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 3
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
PCI Express power connectors (16-pin) 1
Packaging content
Cables included CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width 140 mm
Depth 150 mm
Height 86 mm
Weight 1.35 kg
Packaging data
Cables included CPU, PCIe, Peripheral (Molex), SATA
Package depth 182 mm
Package width 282 mm
Package height 127 mm
Package type Box
Package weight 2.1 kg
Certificates
80 PLUS certification 80 PLUS Gold
