ASUS Turbo -AI-PRO-R9700-32G AMD Radeon AI PRO R9700 32 GB GDDR6

TURBO Radeon AI PRO R9700, 4096 Stream Processors, 128 AI Accelerators, 95.7 TFLOPS

Description

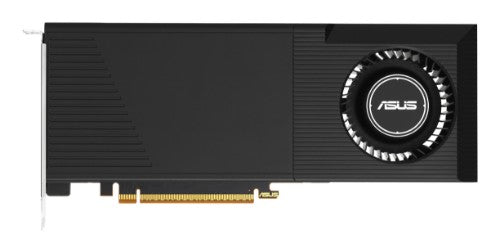

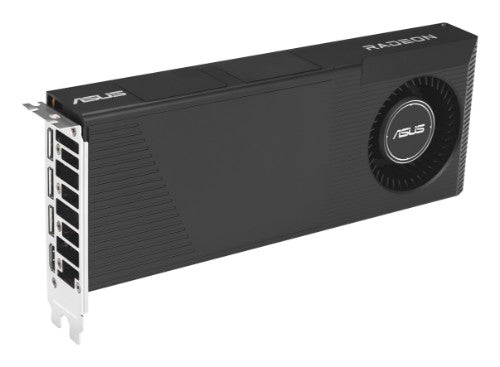

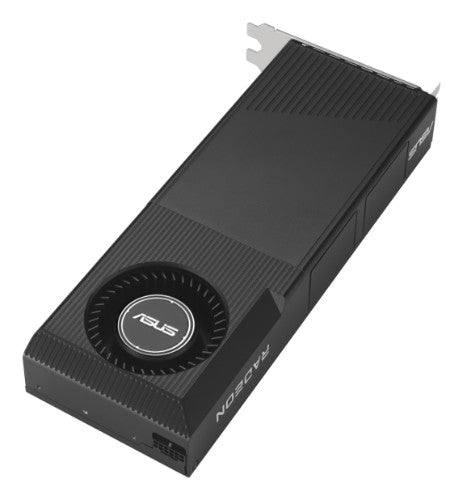

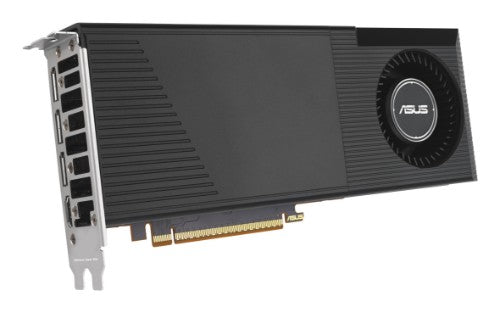

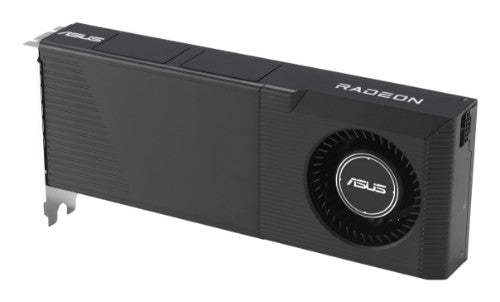

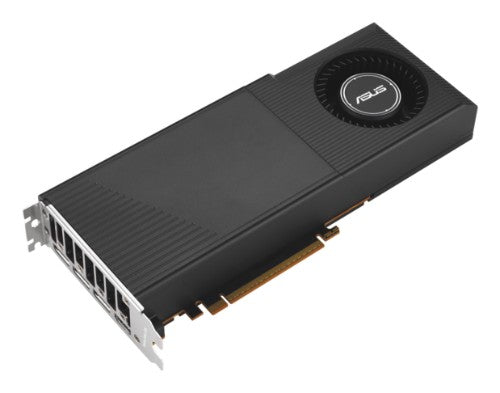

ASUS Turbo Radeon™ AI Pro R9700
TURBOCHARGED FOR AI
The ASUS Turbo Radeon™ AI Pro R9700 32GB is built for compact workstations tackling AI and professional workloads. Its blower-style cooler, die-cast shroud, and reinforced backplate ensure efficient heat dissipation and long-term reliability—even in the tightest spaces.

Cooling

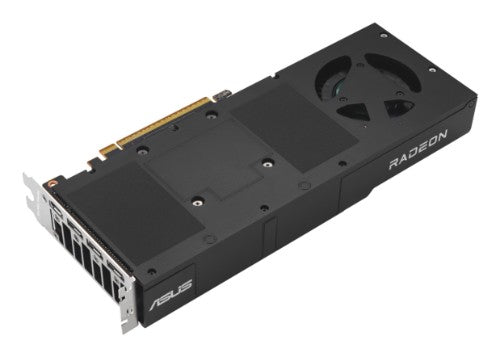

Diecast Shroud and Backplate
Engineered to boost heat dissipation and strengthen the card's structure. Its special wave design maximizes the thermal surface, reducing memory temps by up to 16%.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	2920 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon AI PRO R9700
Processor boost clock speed (OC mode)	2940 MHz
Ray accelerators	64
Processor boost clock speed (Gaming mode)	2350 MHz
Compute units	64
AI accelerators	128
Render Output Units (ROPs)	128
Memory
Discrete graphics card memory	32 GB
Data transfer rate	20 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Peak Single Precision Matrix (FP32) performance	47.8 TFLOPS
Peak Half Precision (FP16) performance	95.7 TFLOPS
Peak INT4 performance	1531 TOPs
Peak INT8 Performance	766 TOPs
Design
Number of fans	1 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Grey
Number of slots	2
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	750 W
Weight & dimensions
Number of slots	2
Weight	1.04 kg
Height	111.1 mm
Depth	40 mm
Length	266.7 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Grey
TV tuner integrated	No
System requirements
Minimum system power supply	750 W
Packaging data
Package type	Box
Package width	368 mm
Package height	68 mm
Package depth	220.5 mm
Package weight	1.5 kg
Manual	Yes
Packaging content
Manual	Yes
