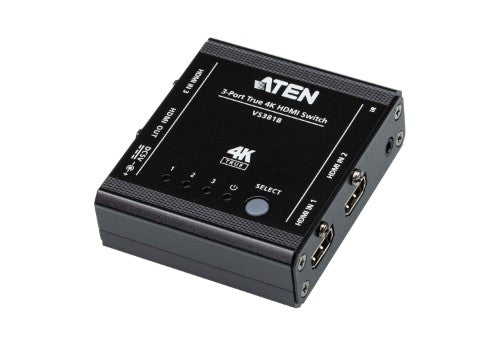

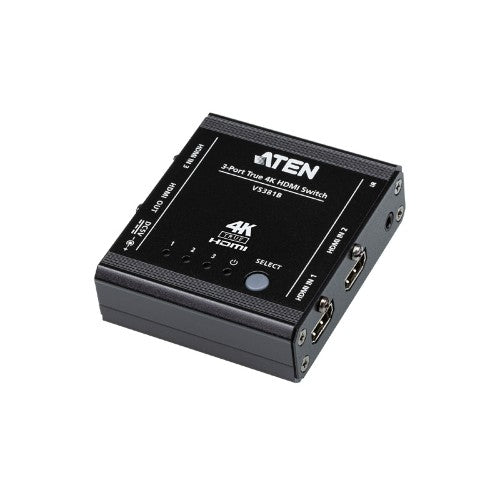

ATEN 3-Port True 4K HDMI Switch

3-Port True 4K HDMI Switch

Key Features

• Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
• Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
• HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
• Auto switching mode for auto port selection

Description

The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.

Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Package Contents

- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions

Specifications

Ports & interfaces
Video port type	HDMI
HDMI ports quantity	4
Number of HDMI outputs	1
HDMI in	3
DC-in jack	Yes
3.5 mm (1/8-inch) in	Yes
Features
HD type	4K Ultra HD
3D	Yes
Dolby technologies	Dolby Vision
Input impedance	100 Ω
Product colour	Black
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
Maximum operating distance	5 m
Material	Metal
HDCP	Yes
External power adapter	Yes
Bandwidth	600 MHz
Bandwidth	18 Gbit/s
HDCP version	2.2
Power
Power consumption (typical)	1.46 W
Weight & dimensions
Width	71.6 mm
Height	25.5 mm
Depth	79 mm
Weight	150 g
Technical details
HD type	4K Ultra HD
3D	Yes
Dolby technologies	Dolby Vision
Input impedance	100 Ω
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Width	71.6 mm
Height	25.5 mm
Depth	79 mm
Product colour	Black
Video port type	HDMI
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
Maximum operating distance	5 m
Material	Metal
HDMI ports quantity	4
HDCP	Yes
External power adapter	Yes
Bandwidth	600 MHz
Bandwidth	18 Gbit/s
Harmonized System (HS) code	85176990
Packaging content
AC adapter included	Yes
Operational conditions
Storage relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Logistics data
Harmonized System (HS) code	85176990
