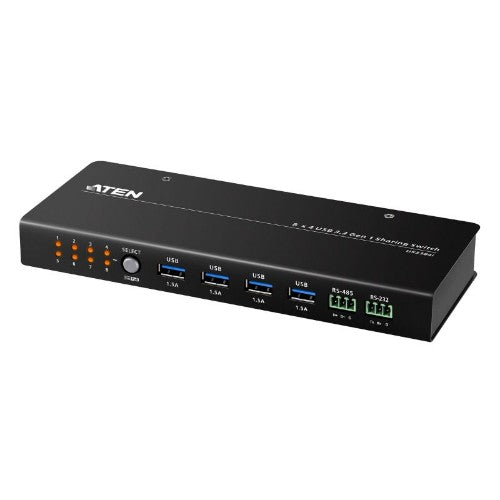

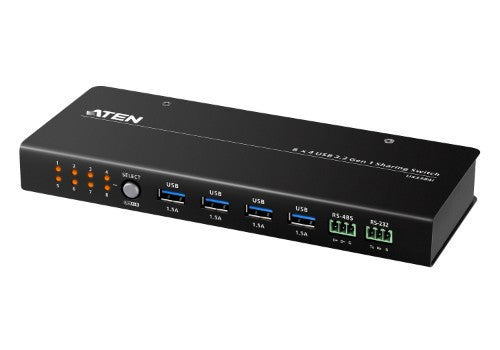

ATEN 8X4 USB 3.1 Switch With PSU

8 x 4 USB 3.2 Gen 1 Sharing Switch

Key Features

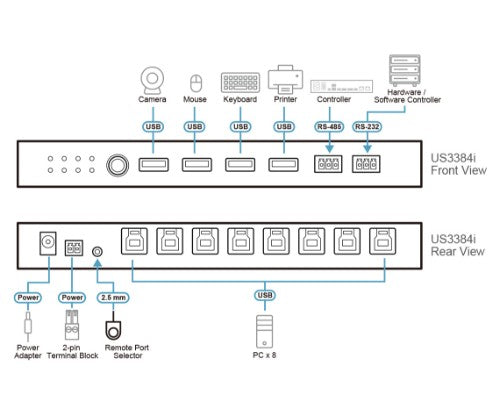

• Allows sharing of up to 4 USB 3.2 devices among 8 PCs
• Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector
• Power on Detection – Automatically switches the PC focus to the last plugged-in/powered-on host device
• Supports DC 9 – 24V power input through terminal block

Description

Driven by the shift to hybrid and remote work, the US3384i is designed to elevate your BYOM/BYOD meeting experience with ease. Meeting room setups are straightforward and effortless, thanks to its plug-and-play design that allows connections to up to 8 PCs/laptops and sharing of up to 4 USB 3.2 Gen 1 devices in no time. With blazing-fast data transmission, cross-platform compatibility (e.g. Windows, macOS, Linux), and flexible port-switching, the USB sharing switch further streamlines meeting workflows, enhances collaboration, and reduces the overhead of IT procurement and management for workplaces.

Seamless Integration into Control System
The USB sharing switch can be seamlessly integrated into a control system (e.g. ATEN Control System – VK1100A, VK211) as part of the meeting room setup via its serial connectivity, with the control system serving as a centralized platform to streamline AV/IT management and simplify maintenance.

Power-On Detection to Switch Control
The USB switch will shift the PC focus to the most recently connected host device, with the corresponding port LED illuminated to indicate which active port has control over the resources.
Note: Long press the pushbutton to turn on/off the Power-On Detection feature.

Up to 5 Gbps Data Transfer Rate with USB 3.2 Gen 1
To maintain an efficient meeting flow, take advantage of the superior 5 Gbps data transfer speed of the built-in USB 3.2 Gen 1 ports, which are also backward compatible with USB 2.0/1.1 devices.

Specifications

Ports & interfaces
Serial ports quantity	2
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	4
Technical details
Product colour	Black
LED indicators	Yes
Design
Product colour	Black
LED indicators	Yes
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	80.6 mm
Depth	200 mm
Height	25 mm
Weight	500 g
Packaging content
Manual	Yes
