ATEN

ATEN AT-VC180

SKU VC180
£57.27
£57.27
Excluding taxes

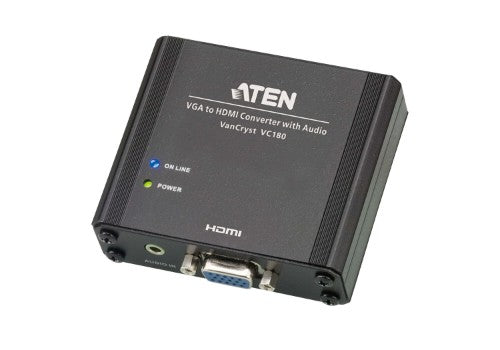

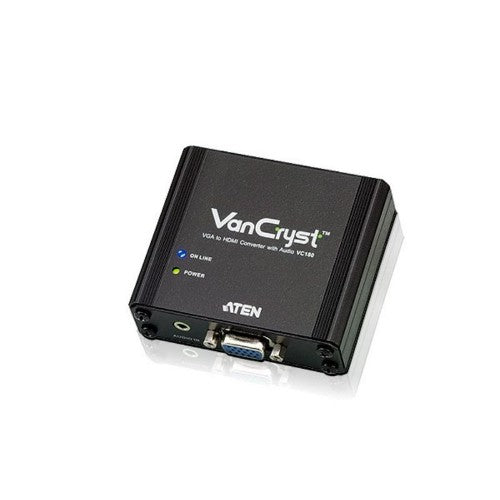

VGA/Audio to HDMI Converter

Key Features

  • Converts VGA signals to HDMI output
  • Supports analog stereo audio input
  • Superior video quality – up to 1080p, WUXGA
  • Screen Position Button – screen position settings can be stored for each output resolution
  • Multiplatform support – Windows and Mac
  • Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Automatically detects video input signals
  • LED indicator
  • HDMI compatible
  • Compact and lightweight
  • No software required – eliminates incompatibility and installation issues

Description

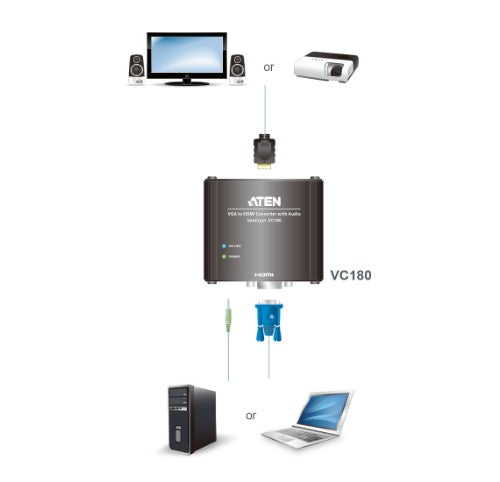

The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.

Specifications

Technical details
Housing material Metal

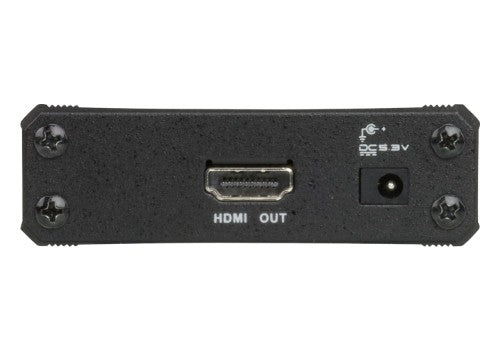

Video out 1 x HDMI Type A Female (Black)

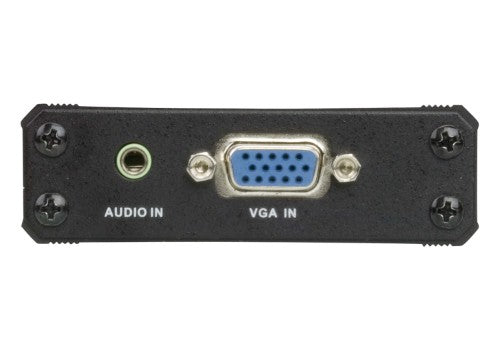

Video in 1 x HDB-15 Female (Blue)
Maximum video resolution 1920 x 1080 pixels
Supported video modes 1080p
Output interface HDMI
Host interface VGA (D-Sub)
Harmonized System (HS) code 85176990
Colour
Product colour Black
Other features
Housing material Metal
Product colour Black
Features
Housing material Metal
Product colour Black
Video
Maximum video resolution 1920 x 1080 pixels
Supported video modes 1080p
Ports & interfaces
Video out 1 x HDMI Type A Female (Black)
Video in 1 x HDB-15 Female (Blue)
3.5 mm connector Yes
Output interface HDMI
Host interface VGA (D-Sub)
Power
Power consumption (typical) 3.2 W
Input voltage 5.3 V
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 79 mm
Depth 78.1 mm
Height 24.4 mm
Weight 150 g
Packaging data
AC adapter included Yes
Quick installation guide Yes
Logistics data
Harmonized System (HS) code 85176990
Packaging content
AC adapter included Yes
Quick installation guide Yes
