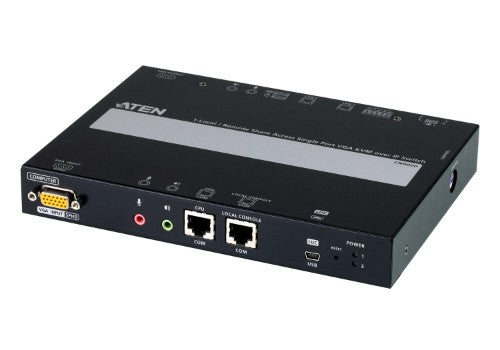

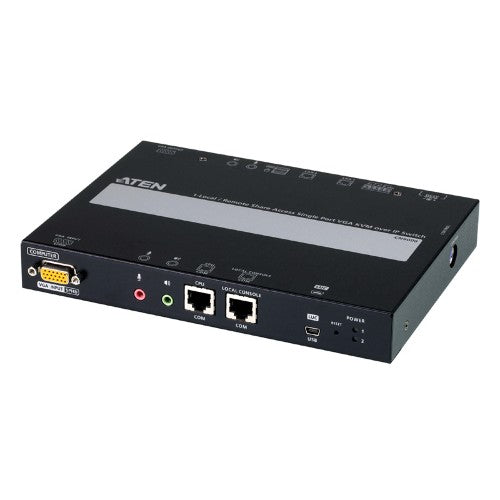

ATEN CN9000 KVM switch Black

1-Local/Remote Share Access Single Port VGA KVM over IP Switch

Key Features

• High video resolution – up to 1920 x 1200 @ 60 Hz
• Provides an FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
• Supports 5-pin Relay/DI Terminal for environment monitoring and reboot control
• Supports Legacy PS/2 keyboard and mouse

Description

The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio, and virtual media of a PC or workstation and features VGA high-definition video with resolutions of up to 1920 x 1200 @ 60 Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible with not only modern-day workstations but also older legacy systems and servers.

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard, and mouse.

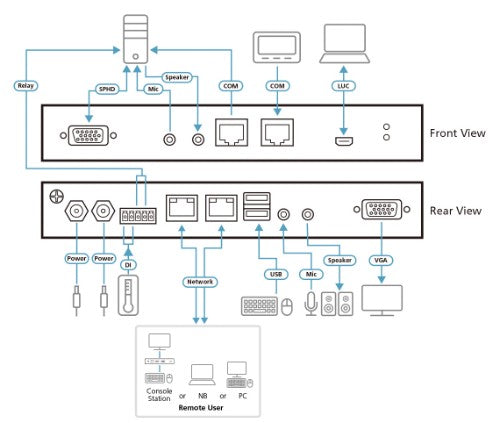

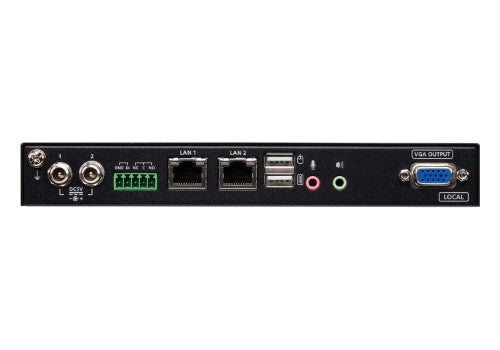

To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.

For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Serial ports quantity	1
Serial port type	RS-232
Number of computers controlled	1
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Audio connections	Yes
VGA (D-Sub) ports quantity	2
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	2
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Performance
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	No
LED indicators	Yes
Design
Product colour	Black
Rack mounting	No
LED indicators	Yes
Housing material	Metal
Power
Power source	AC
Power consumption (typical)	7.46 W
Input voltage	5 V
Video
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	200 mm
Depth	154.1 mm
Height	28.5 mm
Weight	860 g
