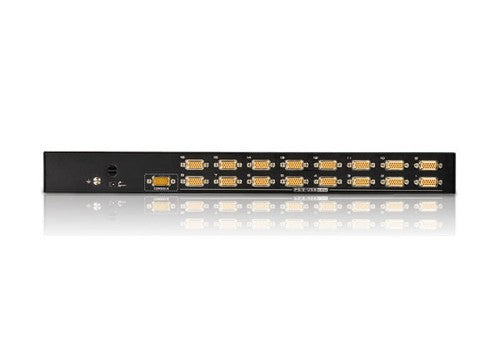

ATEN CS1316 KVM switch Rack mounting Black

OSD, PS/2, USB, 2048 x 1536px, DDC2B, 6.6W, 2.10kg

Description

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Features:
-One USB-PS/2 console controls 16 computers
-Cascade up to 2 levels - control up to 256 computers
-Dual Interface - supports computers with PS/2 or USB keyboards and mice
-Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
-Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
-Auto PS/2 and USB interface detection
-USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
-Superior video quality - up to 2048 x 1536; DDC2B
-Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
-Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
-Auto Scan feature for monitoring user-selected computers
-Hot pluggable - add or remove computers without having to power down the switch
-Buzzer on/off via hotkey and OSD
-Firmware upgradeable
-No software installation required
-Designed for desktop or rack mount (19" system rack, 1U)

Package Contents
1x CS1316 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x Power Adapter (6ft. AC Models)
1x User Manual
1x Quick Start Guide

Specifications

Ports & interfaces
Console ports	VGA (D-Sub)
Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
Hot-Plug support	Yes
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
Technical details
Product colour	Black
Rack mounting	Yes
Hot-Plug support	Yes
Scan interval	1,255 s
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	Yes
Cascadable	Yes
Design
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Cascadable	Yes
Rack capacity	1U
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	Yes
Power
Power source	DC
Power consumption (typical)	6.6 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Windows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Video
Maximum resolution	2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	437.2 mm
Depth	161.3 mm
Height	44 mm
Weight	2.1 kg
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Other features
Push button	Yes
Hot keys	Yes
