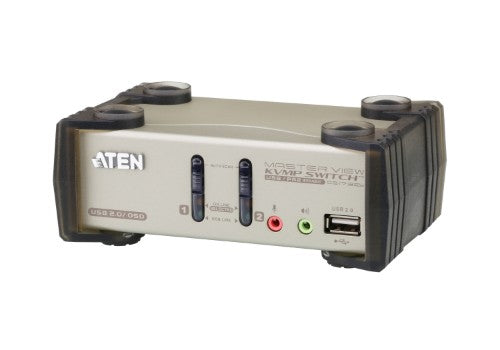

ATEN CS1732B KVM switch

2-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD

Key Features

• 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
• One console controls two computers and two additional USB devices
• 2-port USB 2.0 hub built in
• USB 2.0 compliant
• Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
• Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems

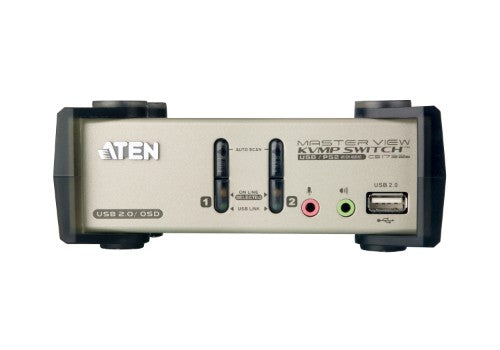

• Console audio ports on front panel for easy access - ideal for IP phone users
• Independent switching of KVM, USB, and Audio focus
• Superior video quality; 2048 x 1536; DDC2B
• Supports widescreen resolutions
• Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
• Multiplatform support - Windows , Mac, and Sun
• Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Sun/Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers
• LED Display for easy status monitoring
• Easy installation no software required
• Firmware upgradeable
• *1.PC keyboard combinations emulate Sun/Mac keyboards
• 2.Sun/Mac keyboards only work with their own computers

Description

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.

Specifications

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic
USB version	2.0
Number of computers controlled	2
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Audio connections	Yes
USB 2.0 ports quantity	2
Headphone outputs	4
USB hub	Yes
Cable length	1.2 m
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
Technical details
Scan interval	1,255 s
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Network, USB
Hot keys	Yes
USB version	2.0
USB hub	Yes
Design
Cable length	1.2 m
Push button	Yes
LED indicators	Network, USB
Hot keys	Yes
Housing material	Metal
Display
On Screen Display (OSD)	Yes
Power
Power source	DC
Power consumption (typical)	2.5 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Video
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	140 mm
Depth	88 mm
Height	55.5 mm
Weight	550 g
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
Other features
Push button	Yes
Hot keys	Yes
