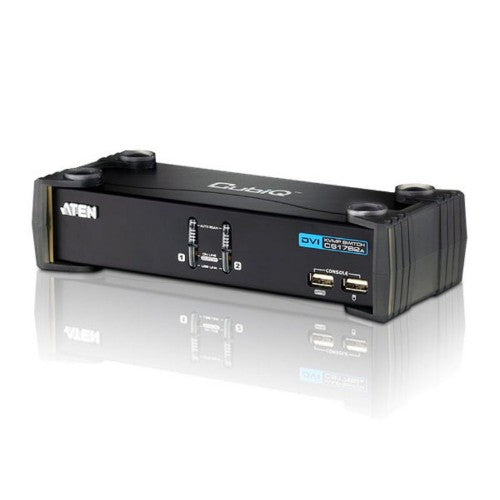

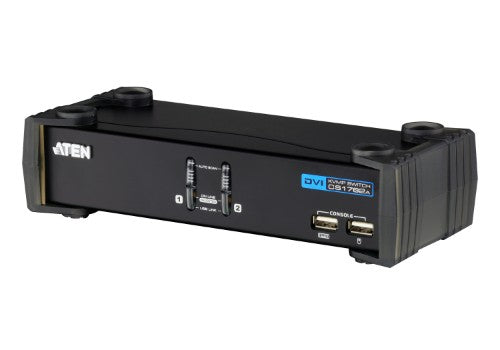

ATEN CS1762A KVM switch Black

2-Port USB DVI/Audio KVMP™ Switch

Key Features

• One USB console controls two DVI computers and two additional USB 2.0 devices
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports widescreen resolutions
• Superior video quality – 1920 x 1200
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• HDCP compatible
• Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
• Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• * 1. PC keyboard combinations emulate Mac/Sun keyboards
• 2. Mac/Sun keyboards only work with their own computer

Description

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Specifications

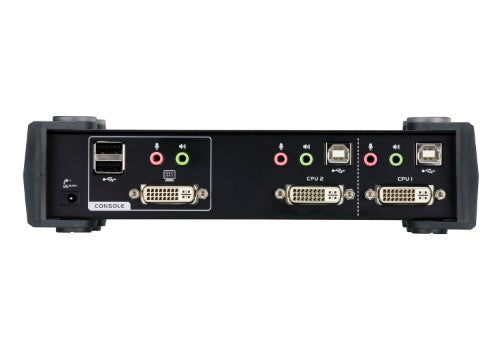

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB version	2.0
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	1
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
Headphone outputs	2
DVI-I ports quantity	1
DC-in jack	Yes
USB hub	Yes
HDCP	Yes
Performance
HDCP	Yes
Power on detection	Yes
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Scan interval	1,99 s
Technical details
Product colour	Black
Rack mounting	No
Scan interval	1,99 s
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
USB version	2.0
USB hub	Yes
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Power source	DC
Power consumption (typical)	9 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Video
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	210 mm
Depth	88 mm
Height	55.5 mm
Weight	730 g
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
