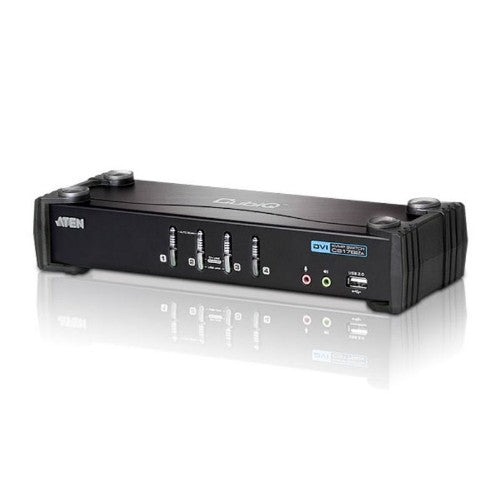

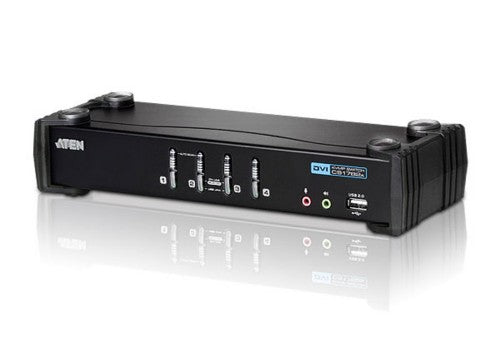

ATEN CS1764A KVM switch Black

USB, DVI-I, 1920 x 1200 @ 60Hz, DDC2B, DC 5.3V, 10.7W, 940g

Description

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Features:
-One USB console controls four DVI computers and two additional USB 2.0 devices
-2-port USB 2.0 hub built in
-Fully compliant with the USB 2.0 specification

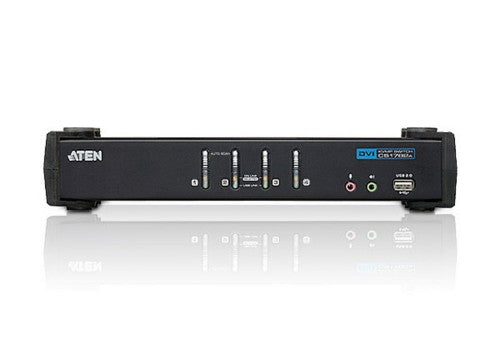

-Computer selection via front panel pushbuttons and hotkeys
-Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
-Multiplatform support - Windows, Linux, Mac and Sun
-Superior video quality - 1920 x 1200, 60Hz; DDC2B
-Independent switching of KVM, USB, and Audio focus
-DVI digital and analog monitor support - fully compliant with the DVI specifications
-HDCP compliant
-Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
-Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
-Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
-Sun /Mac keyboard support and emulation*
-Auto Scan Mode for monitoring all computers
-Firmware upgradable via USB

* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

Package Contents
1x CS1764A USB 2.0 DVI KVMP™ Switch
4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Power Adapter
1x User Manual
1x Quick Start Guide

Specifications

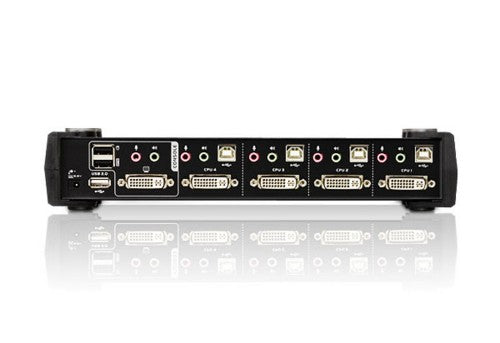

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB version	2.0
USB connector type	USB Type-A
Number of microphone inputs	5
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
USB 2.0 ports quantity	4
Headphone outputs	5
DVI-I ports quantity	5
DC-in jack	Yes
USB hub	Yes
HDCP	Yes
Performance
DDC2B support	Yes
HDCP	Yes
Power on detection	Yes
Firmware upgradeable	Yes
HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Scan interval	1,99 s
Technical details
Product colour	Black
Scan interval	1,99 s
Push button	Yes
On Screen Display (OSD)	No
LED indicators	USB, Yes
Hot keys	Yes
USB version	2.0
USB hub	Yes
Compliance certificates	RoHS
Design
Product colour	Black
Push button	Yes
LED indicators	USB, Yes
Hot keys	Yes
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Power source	DC
Power consumption (typical)	10.7 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Video
HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	270 mm
Depth	88 mm
Height	55.5 mm
Weight	940 g
Packaging content
Cables included	DC, KVM
Quick installation guide	Yes
Manual	Yes
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
