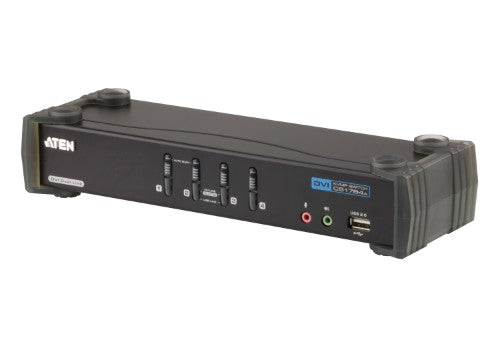

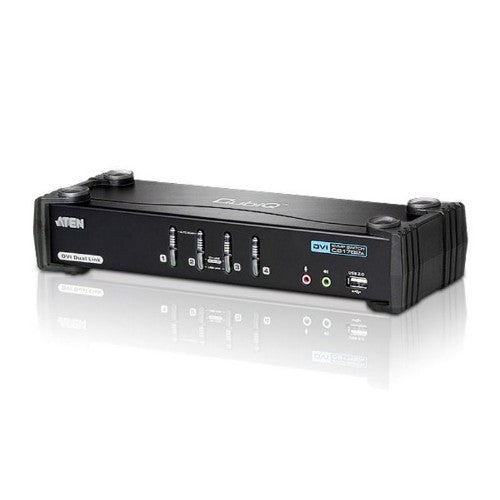

ATEN CS1784A KVM switch Black

4-Port USB DVI Dual Link/Audio KVMP™ Switch

Key Features

• 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
• One USB console controls four computers and two additional USB devices
• 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
• Full bass response for high quality 2.1 channel surround sound systems
• Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
• Multiplatform support – Windows, Linux, Mac, and Sun*
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
• nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
• HDCP compatible
• Support widescreen resolutions
• Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
• Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
• Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
• Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
• * PC keyboard combinations emulate Mac/Sun keyboards
• Mac/Sun keyboard work only with their own

Description

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Specifications

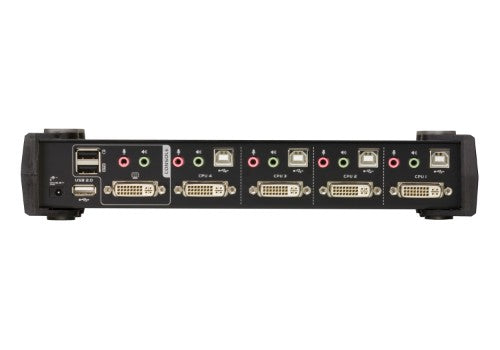

Ports & interfaces
Console USB ports quantity	3
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB connector type	USB Type-A
Number of microphone inputs	2
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
USB 2.0 ports quantity	2
Headphone outputs	4
DVI-I ports quantity	5
DC-in jack	Yes
HDCP	Yes
Performance
HDCP	Yes
Power on detection	Yes
Firmware upgradeable	Yes
Maximum resolution	2560 x 1600 pixels
Scan interval	1,99 s
Technical details
Product colour	Black
Rack mounting	No
Scan interval	1,99 s
Push button	Yes
Hot keys	Yes
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	No
Push button	Yes
Hot keys	Yes
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	10 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Video
Maximum resolution	2560 x 1600 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	270 mm
Depth	88 mm
Height	55.5 mm
Weight	930 g
Packaging content
Cables included	KVM
Manual	Yes
AC adapter included	Yes
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
