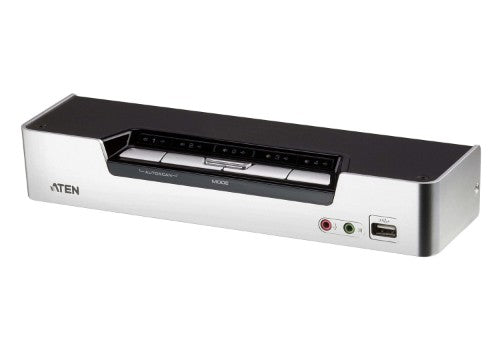

ATEN CS1794 KVM switch Rack mounting Black, Stainless steel

4-Port USB HDMI/Audio KVMP™ Switch

Key Features

• 4-port HDMI USB 2.0 KVMP™ Switch
• One USB console controls four HDMI-interface computers and two additional USB devices
• 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
• Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
• HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
• Dolby True HD and DTS HD Master Audio support
• Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
• Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
• Supports widescreen resolutions
• Multiplatform support - Windows, Linux,and Mac
• Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers and HDMI devices
• Firmware Upgradable
• * 1. PC keyboard combinations emulate Mac Keyboards
• 2. Mac keyboards only work with their own computers

Description

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

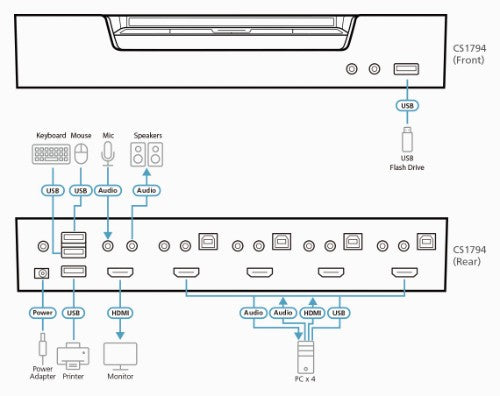

Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Specifications

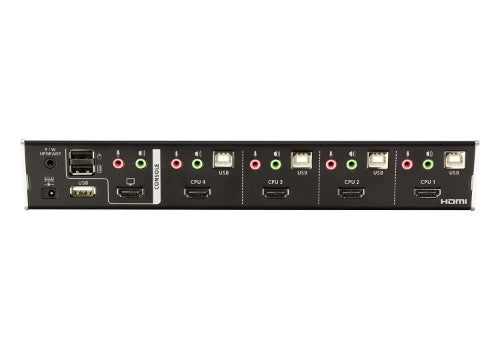

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	6
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
USB 2.0 ports quantity	4
Headphone outputs	6
HDMI ports quantity	5
DC-in jack	Yes
HDCP	Yes
Performance
HDCP	Yes
Power on detection	Yes
Firmware upgradeable	Yes
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Scan interval	1,99 s
Technical details
Product colour	Black, Stainless steel
Rack mounting	Yes
Scan interval	1,99 s
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
Compliance certificates	RoHS
Design
Product colour	Black, Stainless steel
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Rack capacity	1U
Housing material	Metal, Plastic
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Power source	DC
Power consumption (typical)	4.8 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	262.3 mm
Depth	76.8 mm
Height	44 mm
Weight	530 g
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Harmonized System (HS) code	85176200
