ATEN KA8280 KVM switch Rack mounting Black

HDMI KVM over IP Console Station

Key Features

• A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches*
• Impenetrable security against virus threats and impervious data protection
• Single sign-on to consolidate the management of multiple ATEN’s KVM over IP switches
• Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
• 1 HDMI video output
• Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
• Supports Boundless Switching – allows users to control up to 3 screens between two console stations by using one set of keyboard & mouse
• Share screen – shares screen content from one console station to another for real-time collaboration
• Supports Telnet / SSH for connecting to and management of console devices
• Supports RDP / VNC remote management for physical servers / virtual machines*
• Lock screen password – prevents unauthorized users from accessing the console station when unattended
• Supports Virtual Media
• Supports USB Smartcard
• Wall Mountable – standard mounting kit included
• Space-saving 0U rack mount design for rear rack mounting
• GUI with multi-language interface
• Note: The audio function is not supported and it will be available in future firmware updates.

Description

The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).

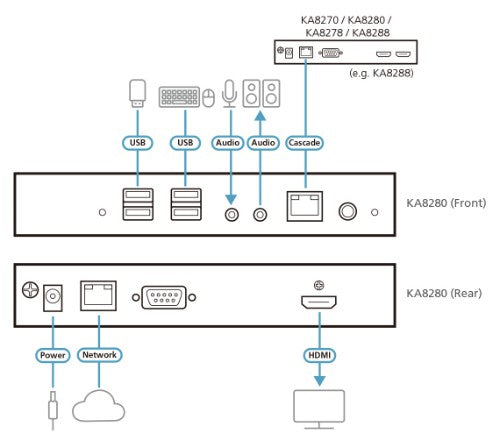

The KA8280 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 HDMI video output at resolutions up to 1920 x 1200 @ 60 Hz.

In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.

The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.

Specifications

Ports & interfaces
USB connector type	USB Type-A
Number of microphone inputs	1
Serial ports quantity	1
Serial port type	DE-9 (DB-9)
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	1
HDMI ports quantity	1
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
HD type	Full HD+
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Power
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Power
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	4.66 W
Input voltage	5 V
Video
HD type	Full HD+
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	155.4 mm
Depth	174.2 mm
Height	28.8 mm
Weight	750 g
Packaging content
Cables included	AC
Manual	Yes
AC adapter included	Yes
Other features
Push button	Yes
