ATEN KH1516Ai KVM switch Rack mounting Black

16-Port CAT5e/6 KVM Over IP Switch

Description

Features

Hardware
- High port density – RJ-45 connectors for up to 16 ports in a 1U housing

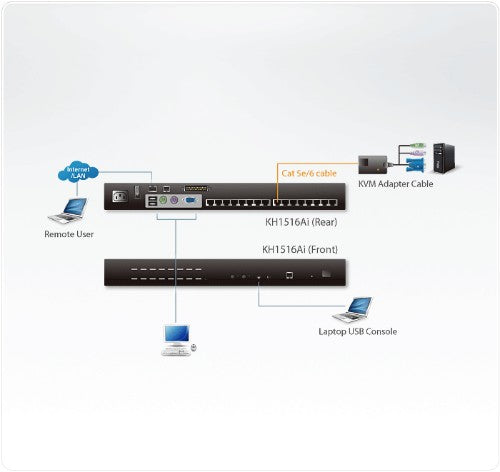

- A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Multiplatform support - Windows, Mac, Sun and Linux
- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
- Daisy-chain up to 15 additional units – control up to 256 computers from a single console

* With KVM Adapter Cable KA7000 series.

Management
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Local Log Event
- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Over the NET™ integration for remote power control
- Firmware upgradeable
- IPv6 capable

Ease-to-Use Interface
- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode™
- Keyboard broadcast – keyboard input can be duplicated on all the attached servers

Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- 128-bit SSL encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control

Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multilanguage support
- Exit Macros support
- BIOS-level access

Package Contents

- 1x KH1516Ai Cat 5 High-Density KVM Over the NET™ Switch
- 1x Firmware Upgrade Cable
- 1x Laptop USB Console Cable
- 1x 0AD8-0C05-34EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions

Specifications

Ports & interfaces
Number of computers controlled	16
Video port type	VGA
PS/2 ports quantity	2
USB 2.0 ports quantity	3
HDMI ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	0
Cable length	50.29 m
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Security algorithms	256-bit AES, 3DES, DES, SSL/TLS
Ethernet LAN (RJ-45) ports	1
Performance
Maximum resolution	1600 x 1200 pixels
Scan interval	255 s
Security algorithms	256-bit AES, 3DES, DES, SSL/TLS
Technical details
Product colour	Black
Rack mounting	Yes
Scan interval	255 s
LED indicators	Yes
Design
Product colour	Black
Cable length	50.29 m
Rack mounting	Yes
LED indicators	Yes
Rack capacity	1U
Housing material	Metal
Power
Power consumption (typical)	12.5 W
Video
Maximum resolution	1600 x 1200 pixels
Security
Security algorithms	256-bit AES, 3DES, DES, SSL/TLS
Weight & dimensions
Width	161 mm
Depth	437 mm
Height	44 mm
Weight	2.8 kg
Package weight	4.08 kg
Packaging data
Package weight	4.08 kg
Packaging content
Quick installation guide	Yes
Manual	Yes
Other features
Connectivity technology	Wired
RJ-12 ports quantity	0
Power requirements	1A
Ports quantity	16
Minimum system requirements	Pentium III 1 GHz 1024 x 768 VGA/SVGA/Multisync USB Type A 6-pin mini-DIN
Display resolution at frequency	1600 x 1200 @ 60Hz 1280 x 1024 @ 75Hz
