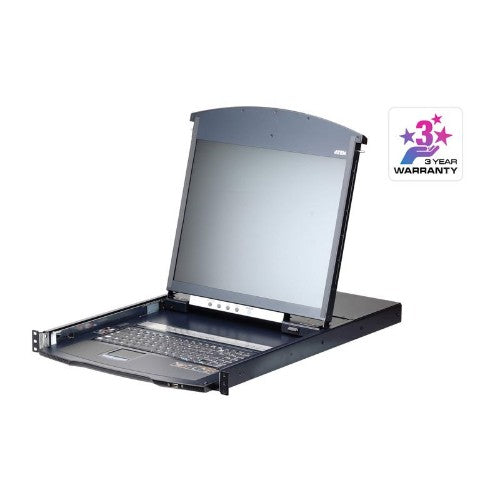

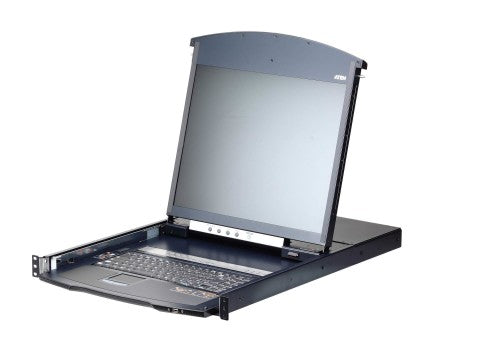

ATEN KL1116VN KVM switch Rack mounting Black

16-Port Cat 5 Dual Rail LCD KVM over IP Switch 1 local / 1 remote user access

Description

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.

The KL1116VN switches allow local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help manage and control an entire data center, our KL1116VN KVM over IP switches support blade servers and chassis with powerful new features such as Power Association which allows KVM ports to be associated with ATEN PDU power outlets for power management of servers from the KVM switches’ user interface.

The KL1116VN KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) and CC2000 Centralized Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines. The CCVSR records all operations on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception.

The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.

With dual on-board NICs and out-of-band access with external modem support, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.

With ATEN KVM over IP switches, IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	DVI-D, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D/VGA
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
Ethernet LAN (RJ-45) ports	2
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports	2
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Scan interval	1,255 s
Maximum digital resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Scan interval	1,255 s
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Cascadable	Yes
Compliance certificates	RoHS
Design
Keyboard language	Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, UK English, US English
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Cascadable	Yes
Rack capacity	1U
Housing material	Metal
Display
Built-in display	Yes
Display	LCD
On Screen Display (OSD)	Yes
Display diagonal	48.3 cm (19")
Power
Input current	1 A
Power source	AC
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	701.2 mm
Depth	480 mm
Height	44 mm
Weight	15.3 kg
Packaging content
Rack mount kit	Yes
Cables included	AC
Manual	Yes
Other features
Push button	Yes
