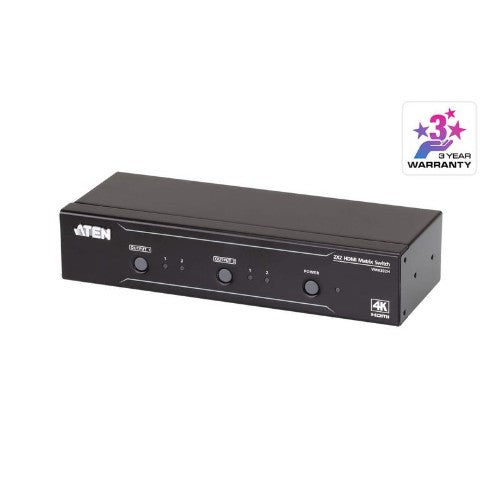

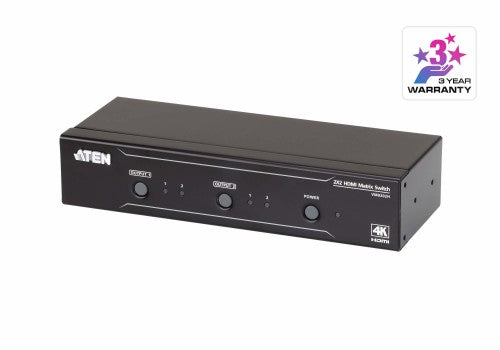

ATEN VM0202H KVM switch Rack mounting Black

2x2 4K HDMI Matrix Switch

Key Features

• Connects 2 HDMI sources to any 2 HDMI displays
• HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
• Supports computer and video resolutions up to 4K
• Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
• Supports long distance transmission at a distance up to 15 meters
• Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
• EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
• Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
• All- metal casing
• Firmware upgradable
• Rack mountable

Description

The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.

The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.

Specifications

Ports & interfaces
Number of computers controlled	2
Keyboard port type	No
Mouse port type	No
Video port type	HDMI
HDMI ports quantity	4
DC-in jack	Yes
HDCP	Yes
Performance
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Maximum operating distance	15 m
Technical details
Product colour	Black
Rack mounting	Yes
Maximum operating distance	15 m
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	Yes
Housing material	Metal
Display
Built-in display	No
Video
Maximum resolution	4096 x 2160 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	76 mm
Depth	200 mm
Height	42 mm
Weight	580 g
Other features
Maximum operating distance	15 m
Logistics data
Harmonized System (HS) code	85176200
