be quiet!

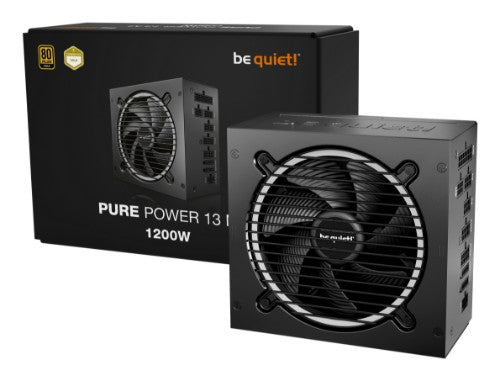

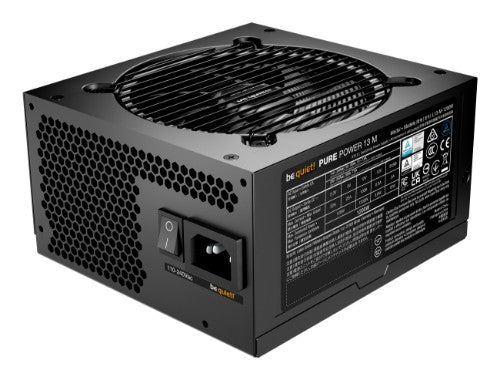

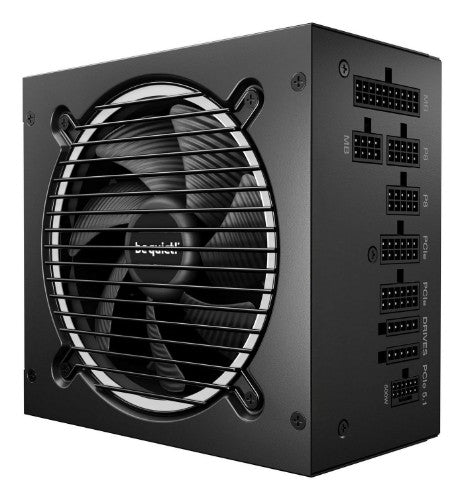

be quiet! Pure Power 13 M | 1200W power supply unit 20+4 pin ATX ATX Black

SKU BP029EU
£159.66
£117.78
£159.66
£117.78
Excluding taxes
1200W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm

Key Features

  • 80 PLUS® Gold efficiency (up to 93.5%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
  • Full suite of safety features
  • Meets latest requirements for modern standby

Description

Exceptional quiet, superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan speed 0 - 2700 RPM
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
EPS version 2.92
Noise level 32.3 dB
Mean time between failures (MTBF) 100000 h
Bearing technology Rifle
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan speed 0 - 2700 RPM
Cooling type Active
Power
Total power 1200 W
Maximum input current (@220V) 7.5 A
Peak power 1250 W
AC input voltage 110 - 240 V
AC input frequency 50/60 Hz
Power factor 0.97
Power Factor Correction (PFC) type Active
Maximum input current (@110V) 15 A
Combined power (+3.3V) 120 W
Combined power (+12V) 1200 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 22 A
Max output current (+12V) 100 A
Max output current (+5V) 22 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time 19.11 ms
Efficiency 90.8%
Number of +12V rail(s) 1
Ports & interfaces

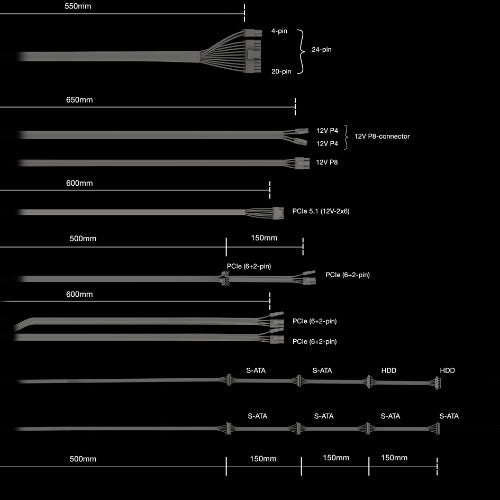

Motherboard power cable length 55 cm
SATA power cable length 500,650,800,950 mm
Peripheral (Molex) power cable length 800,950 mm
PCI Express power cable length 60 cm
CPU power cable length 65 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 2
EPS power connector (8-pin) Yes
PCI Express power connectors (6+2 pin) 4
CPU P4 connector (4-pin) 2
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
PCI Express power connectors (12-pin) 1
Number of SATA power cables 2
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 95%
Technical details
Shipping (inner) case width 32 cm
Shipping (inner) case length 59 cm
Shipping (inner) case height 24.5 cm
Products per shipping (inner) case 6 pc(s)
Sustainability certificates ENERGY STAR, ErP
Compliance certificates BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
80 PLUS certification 80 PLUS Gold
Packaging content

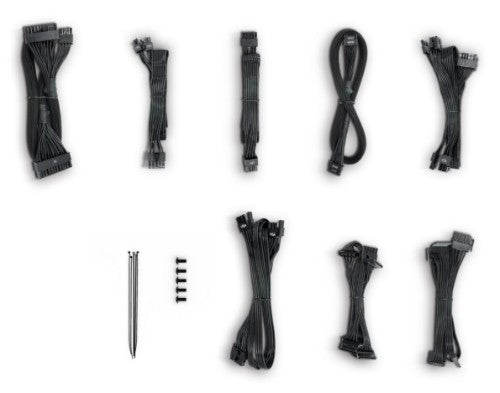

Cables included AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included Yes
Cable ties included Yes
Manual Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Weight & dimensions
Width 150 mm
Depth 160 mm
Height 86 mm
Weight 2.69 kg
Packaging data
Cables included AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included Yes
Cable ties included Yes
Package depth 284 mm
Package width 220 mm
Package height 100 mm
Package type Box
Package weight 3.14 kg
Manual Yes
Manual languages German, English, Spanish, French, Polish, Russian, Ukrainian
Logistics data
Shipping (inner) case width 32 cm
Shipping (inner) case length 59 cm
Shipping (inner) case height 24.5 cm
Products per shipping (inner) case 6 pc(s)
Shipping (inner) case gross weight 20.8 kg
Other features
Screws included Yes
Cable ties included Yes
Manual Yes
