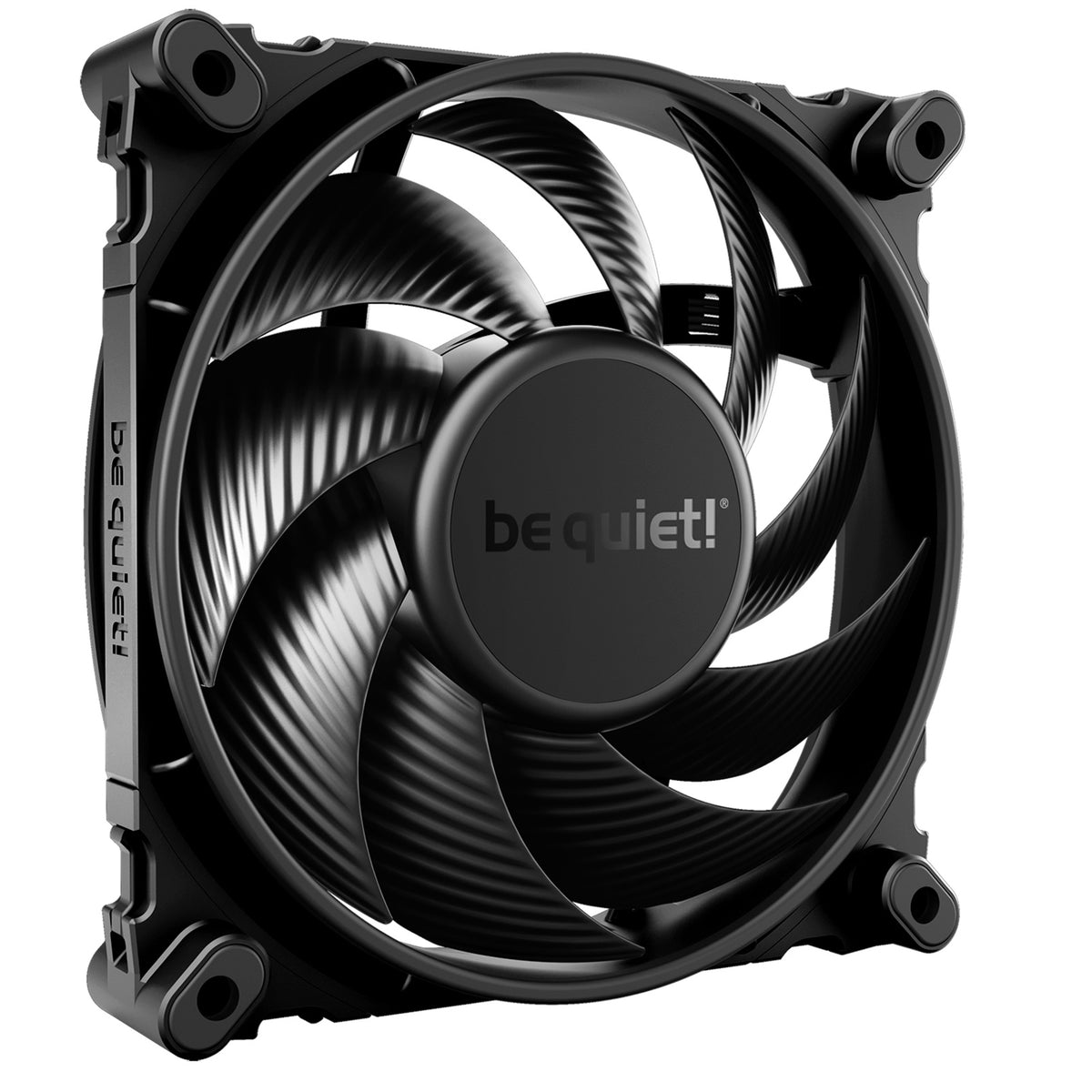

The be quiet! Silent Wings 4 120mm PWM high-speed is a case fan for PC builders who need strong cooling in a compact 120mm format. It also suits radiator and heatsink installations where airflow and air pressure matter.
NO COMPROMISE SILENCE AND PERFORMANCE
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.
- Optimized fan blades for the highest performance on radiators and heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Very silent operation even at maximum speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations

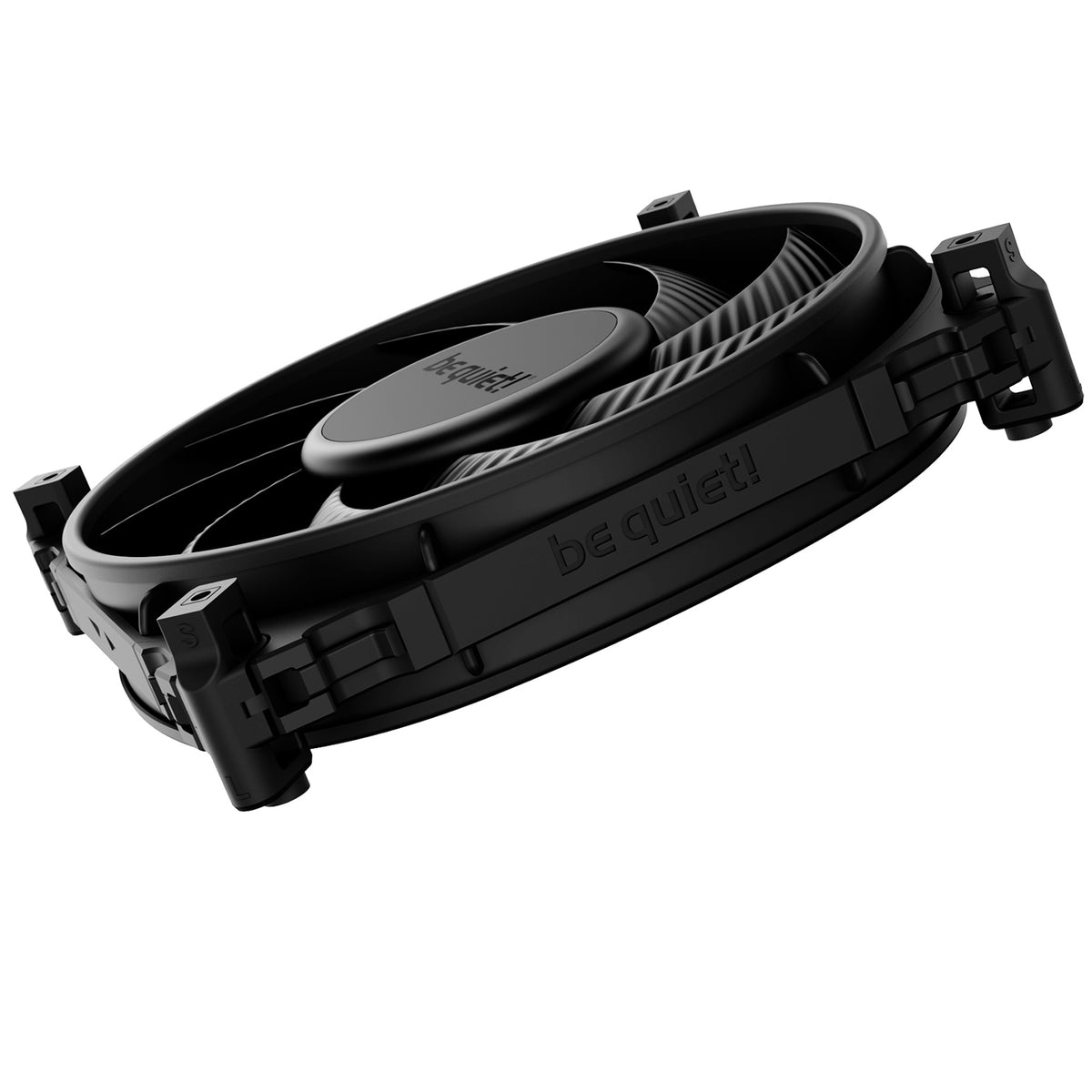

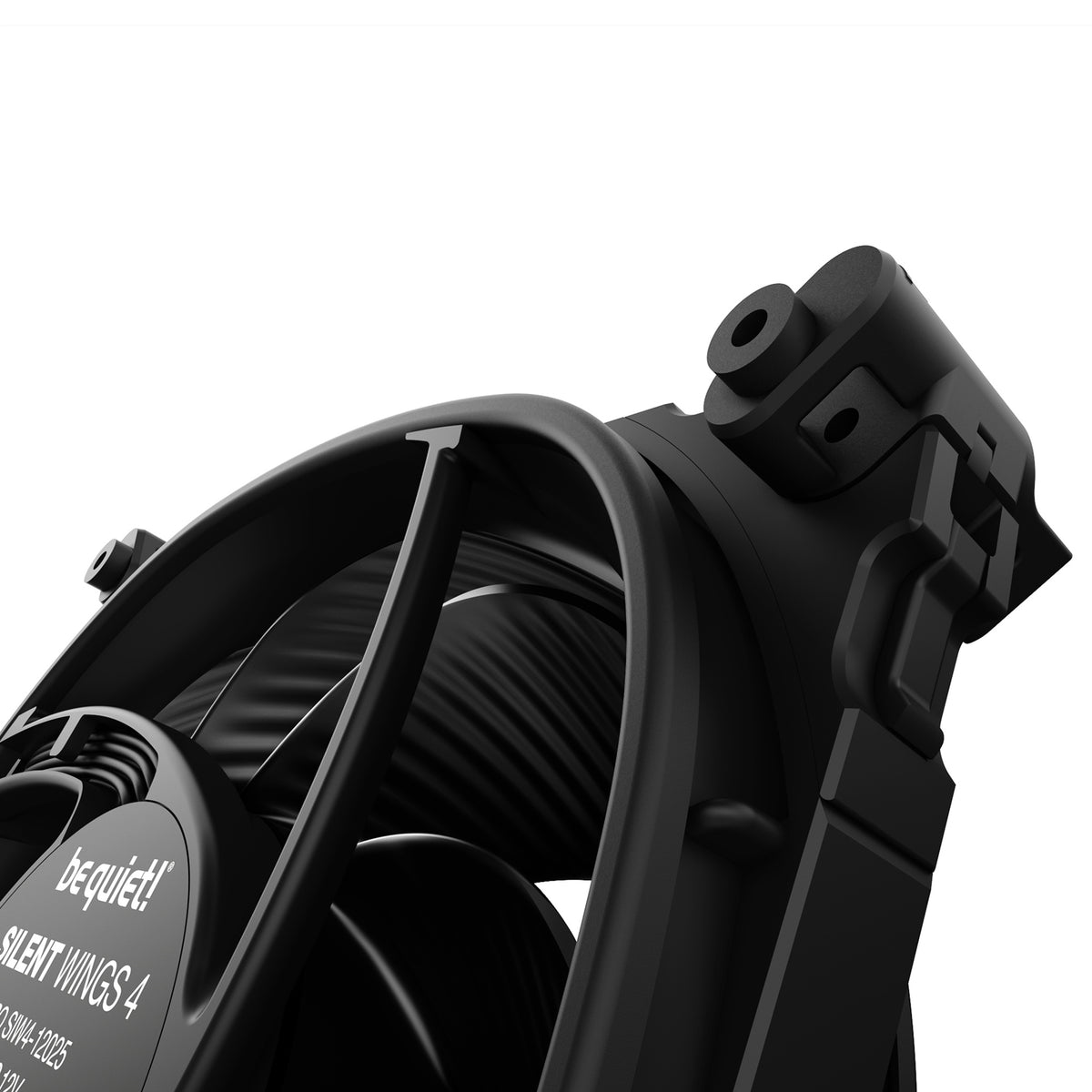

- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design
- 5-year manufacturer warranty
Specification
| Specification | Detail |
|---|---|
| NO COMPROMISE SILENCE AND PERFORMANCE | Equally quiet and performant operation Silent Wings 4 120mm PWM high-speed is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance. |
| OPTIMIZED FOR HIGH-END PERFORMANCE | Minimum tolerances for maximum air pressure Silent Wings 4 120mm PWM high-speed makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 120mm PWM high-speed allows the user to run even the most demanding applications. |
| DIFFERENT MOUNTING OPTIONS | For any purpose Silent Wings 4 120mm PWM high-speed has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed. |
| 6-POLE FAN MOTOR | The key for virtually inaudible operation when needed 6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 31.2dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed. |
| FLUID-DYNAMIC BEARING | For a sustainable operation The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 120mm PWM high-speed. |
| ELEGANT LOOK | Magnificent appearance from all angles Be it as a radiator fan or in the case: Silent Wings 4 120mm PWM high-speed always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes Silent Wings 4 120mm PWM high-speed a high performant and an incredibly good-looking fan. |
| General Data | Model: Silent Wings 4 120mm PWM high-speed Dimensions (mm): 120 Color option: Black Lighting: - Fan speed @ 100% PWM / 12V (rpm): 2500 Noise level @ 100% PWM / 12V (dB(A)): 31.2 Air Flow @ 100% PWM / 12V (CFM / m3/h): 76.7 / 130.31 Air Pressure @ 100% PWM / 12V (mm H2O): 3.96 |

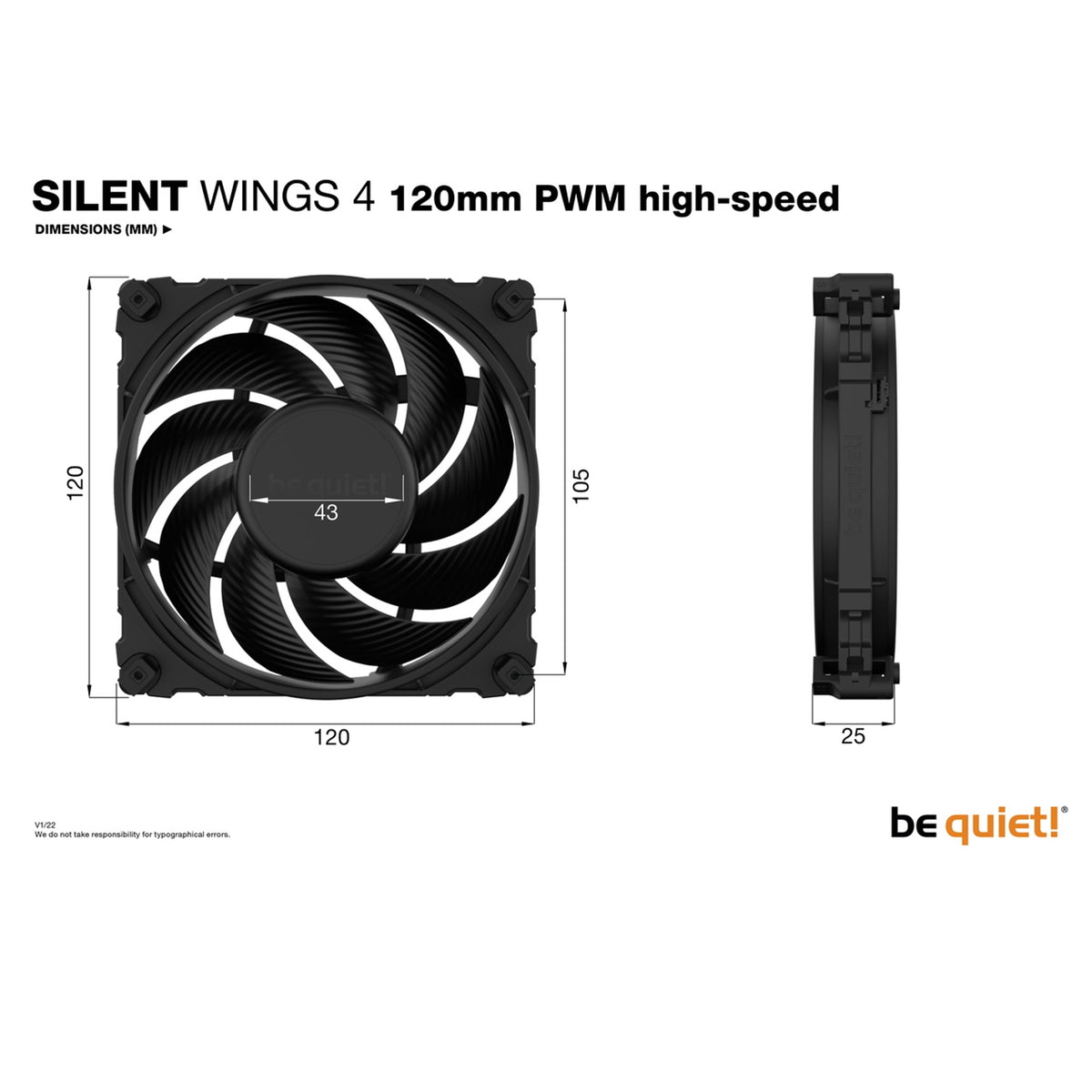

| Mechanical Specifications | Dimensions (L x W x H), (mm): 120 x 120 x 25 Weight incl. fixed cables (g): 190 Bearing technology: FDB Motor technology: 6-pole fan motor Push pin fixing: Yes Screw fixing: Yes |
| Cables / Connectors | Daisy chain for lighting signal: - Lighting connector: - Connector: 4-pin PWM Cable length (mm): 500 Cable sleeve: Yes |
| Performance / Noise | Air Flow @ 100% PWM / 12V (CFM / m3/h): 76.7 / 130.31 Air Pressure @ 100% PWM / 12V (mm H2O): 3.96 Noise level @ 100% PWM / 12V (dB(A)): 31.2 Lifespan (h / 25°C): 300,000 |
| Electrical Specifications | Rated Voltage DC (V): 12 Operating Voltage DC (V): 5 - 13.2 Current consumption (A): 0.20 Safety current (A): 0.22 Input power (W): 2.4 Rated Current LED (A): - |

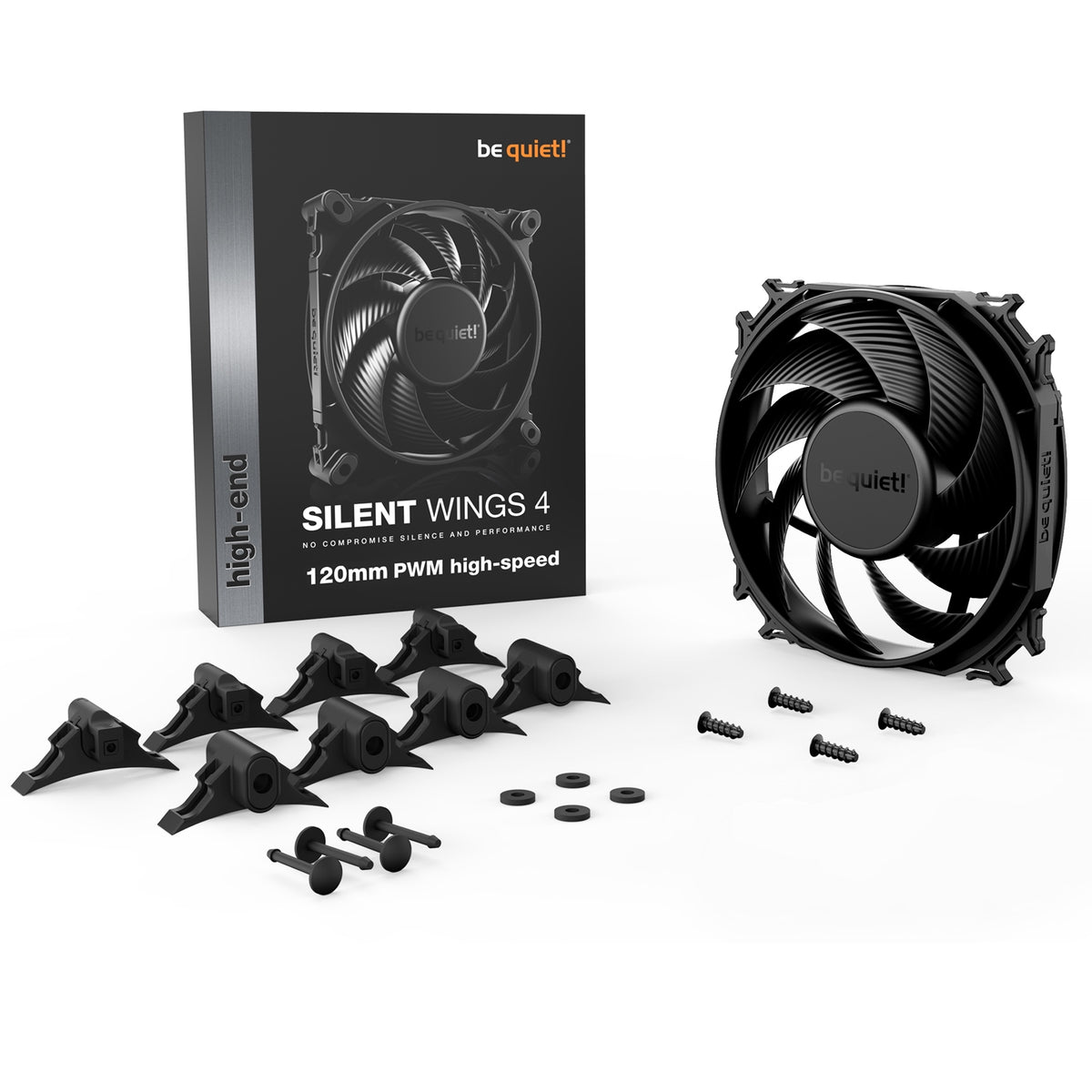

| Accessories | 3-pin to 4-pin 12V-connector: - 12V to 7V adapter: - 12V to 5V adapter: - Screws: 4 Push pins: 4 hard plastic washer: - Others: Rubber & hard plastic mountings |
| Safety Certification | Approvals: CE / RoHs / RU / UKCA / TUV / WEEE |
| Environmental Directives | RoHs: - Triman: - |
| Logistics Data | Article number: BL094 Dimensions, package (L x W x H), (mm): 192 x 141 x 31 Gross weight, package (kg): 0.346 |
-
