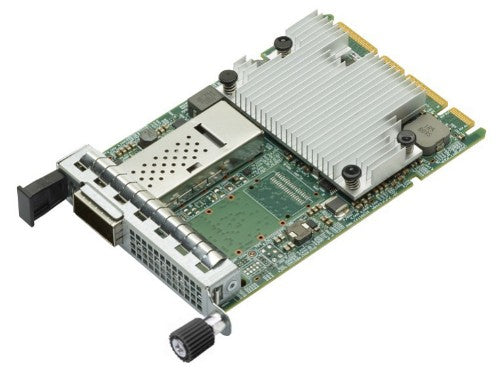

Broadcom BCM957504-N1100G interface cards/adapter Internal QSFP56

High-Performance, Feature-Rich NetXtreme® E-Series Single-Port 100GbE PCIe OCP 3.0 Ethernet Adapter

Key Features

• Standards-compliant 100/50/25/10G single-port QSFP56 OCP 3.0 adapter with line-rate, full-duplex throughput
• NIC partitioning supporting 16 physical functions (PFs)
• TruFlow™ engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
• Industry’s most secure OCP 3.0 adapter solution leveraging Broadcom’s BroadSAFE® technology to provide unparalleled platform security via Silicon Root of Trust
• New end-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
• Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
• TruManage™ enhances server manageability and security for data center deployments
• Multi-host allows multiple compute and storage nodes to seamlessly connect to a single Ethernet adapter for cloud-scale networking and storage applications

Description

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series N1100G 1x100G OCP 3.0 adapter is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics. The N1100G 1x100G OCP 3.0 adapter builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency. Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks. With its market-leading hardware acceleration technologies, the NetXtreme-E Series N1100G 1x100G OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Specifications

Ports & interfaces
Internal	Yes
Output interface	QSFP56
Host interface	PCIe
Expansion card standard	PCIe 3.0
Host interface gender	Male
Performance
Product colour	Green, Silver
Colour
Product colour	Green, Silver
Design
Internal	Yes
Product colour	Green, Silver
Cooling type	Passive
LED indicators	Activity, Link
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Doesn't contain	Halogen
Packaging data
Package weight	90 g
Weight & dimensions
Package weight	90 g
