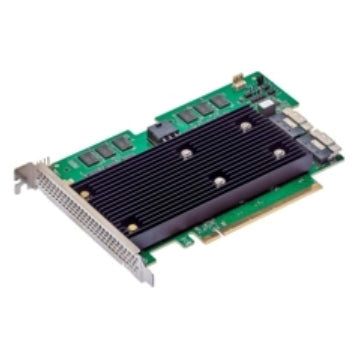

Broadcom MegaRAID 9670-24i RAID controller PCI Express x8 4.0 6 Gbit/s

PCI Express 4.0 x8, 6Gb/s, 3 x SAS SFF-8654 x8, RAID 0/1/5/6/10/50/60

Key Features

• Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
• SFF-8654 (SlimSAS) x8 connectors
• Form-factor friendly cable exit
• Hardware Secure Boot and SPDM Attestation support
• Support critical, high-bandwidth applications with PCIe 4.0 connectivity
• Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
• SFF-TA-1005 Universa Bay Management (UBM) Ready
• Add more protection and peace of mind with CacheVault flash cache protection

Description

The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.

The MegaRAID 9670-24i adapter, based on the SAS4124 RAID-on-Chip (RoC), integrates a 2x72-bit high-speed DDR memory interface delivering faster speeds at 3,200 MT/s and more than 4x increase in RAID5 Random Write IOPs over previous generation adapters. Gain the most flexibility out of your storage controller by direct connecting up to 24 Gen 4.0 NVMe, 24G SAS or SATA devices.

Specifications

Ports & interfaces
Supported storage drive interfaces	SAS, Serial ATA
Internal SAS ports	3
Host interface	PCI Express x8
PCI Express slots version	4.0
Performance
RAID levels	0, 1, 5, 6, 10, 50, 60
SSD support	Yes
S.M.A.R.T. support	Yes
Number of devices supported	240
Mean time between failures (MTBF)	3000000 h
Form factor	MD2
Data transfer rate	6 Gbit/s
Channels quantity	24 channels
Certification	Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Data transmission
Data transfer rate	6 Gbit/s
Technical details
RAID levels	0, 1, 5, 6, 10, 50, 60
SSD support	Yes
S.M.A.R.T. support	Yes
Number of devices supported	240
Form factor	MD2
Channels quantity	24 channels
Compliance certificates	RoHS, WEEE
Design
Form factor	MD2
Endurance
Mean time between failures (MTBF)	3000000 h
Power
Power consumption (typical)	24 W
Certificates
Certification	Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
System requirements
Server operating systems supported	SUSE Linux Enterprise Server
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	VMware vSphere ESXi
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	155.7 mm
Depth	111.2 mm
Other features
Other operating systems supported	VMware vSphere ESXi
