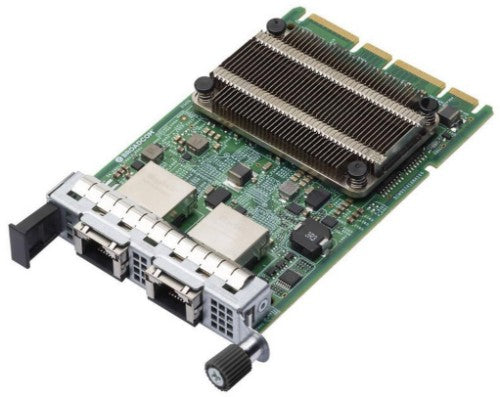

Broadcom NetXtreme N210GBT 2 x 10GBASE-T OCP 3.0 Internal Ethernet 10000 Mbit/s

Dual-Port 10GBASE-T Ethernet PCI Express 3.0 x8 OCP 3.0 Small-FormFactor Card

Key Features

• Dual Port 10 Gb/s 10GBASE-T interface:
• 10GBASE-T IEEE 802.3an
• 1000BASE-T IEEE 802.3ab
• EEE on 10GBASE-T and 1000BASE-T
• Auto sense mode
• Detection and correction of pair swaps (MDI
• crossover), pair skew, and pair polarity
• Auto-negotiation with next page support
• IEEE fast retrain and link monitoring
• x8 PCI Express 3.0 compliant
• SR-IOV with up to 128 virtual functions (VFs)

Description

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series N210TP 2x10GBASE-T OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics. The N210TP 2x10GBASE-T OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency. Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks. With its market-leading hardware acceleration technologies, the NetXtreme-E Series N210TP 2x10GBASE-T OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	2
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Green
Harmonized System (HS) code	85176990
Network
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
Cabling technology	10GBase-T
LAN controller	Broadcom 57416
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Design
Product colour	Green
Internal	Yes
LED indicators	Activity, Link
Power
Power consumption (typical)	14.6 W
Indication
LED indicators	Activity, Link
Packaging data
Package weight	110 g
Weight & dimensions
Package weight	110 g
Other features
Harmonized System (HS) code	85176990
