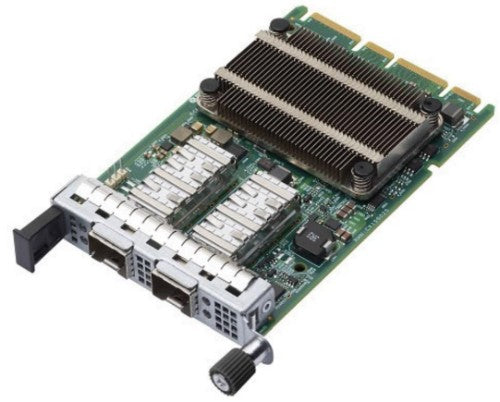

Broadcom NetXtreme N225P 2 x 25G OCP 3.0 Internal Fiber 25000 Mbit/s

Dual-Port 25/10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 Small-Form-Factor Network Adapter

Key Features

• Dual-port pluggable media interface, which is compatible with a 25G SFP28 optical transceiver or a copper direct-attach cable
• Fully compliant with the SFF-8402 standard
• x8 PCI Express 3.0 compliant
• SR-IOV with up to 128 virtual functions (VFs)
• Function-Level Reset (FLR) support
• TruFlow™ flow processing engine
• Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap
• vSwitch Acceleration
• Tunnel-aware stateless offloads
• DCB support – PFC, ETS, QCN, DCBx

Description

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series N225P 2x25G OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics. The N225P 2x25G OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency. Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks. With its market-leading hardware acceleration technologies, the NetXtreme-E Series N225P 2x25G OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP28
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	25000 Mbit/s
Technical details
Product colour	Green
Harmonized System (HS) code	85176990
Network
Ethernet interface type	25 Gigabit Ethernet
Maximum data transfer rate	25000 Mbit/s
Design
Product colour	Green
Certification	SFF-8402
Internal	Yes
LED indicators	Activity, Link
Form factor	OCP 3.0
Power
Power consumption (typical)	11.6 W
Indication
LED indicators	Activity, Link
Packaging data
Package weight	91 g
Weight & dimensions
Package weight	91 g
Certificates
Certification	SFF-8402
Other features
Form factor	OCP 3.0
Harmonized System (HS) code	85176990
