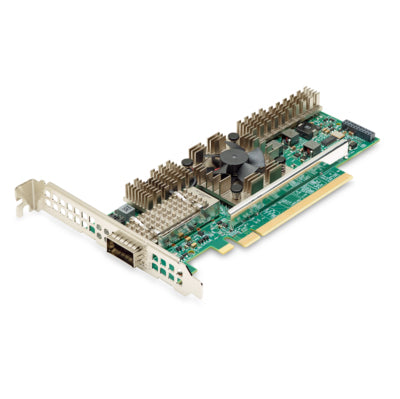

Broadcom P150P Internal Fiber 50000 Mbit/s

NetXtreme® E-Series Single-Port 50GbE PCIe Ethernet NIC, x8 PCI Express v3.0, QSFP28

Description

Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.

The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Specifications

Ports & interfaces
Internal	Yes
Fiber ports quantity	1
Fiber optic connector	QSFP28
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	50000 Mbit/s
Technical details
Product colour	Green, Grey
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Network
Ethernet LAN	Yes
Full duplex	Yes
Ethernet LAN data rates	50000,25000,40000 Mbit/s
Maximum data transfer rate	50000 Mbit/s
Design
Product colour	Green, Grey
Certification	EN 62368-1:2014 IEC 62368-1 (ed. 2) UL 1977 UL 796 UL 94 EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013 CFR47 Part 15 Subpart B Class B ICES-003 Class B AS/NZS CISPR 22:2009 +A1:2010 CNS 13438 (2006) Class B CNS 15663 KN32 Class B KN35 VCCI V-3 (2015-04) EN 55024:2010(EN 61000-4-2) FCC
Internal	Yes
LED indicators	Yes
Component for	PC
Indication
LED indicators	Yes
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	EN 62368-1:2014 IEC 62368-1 (ed. 2) UL 1977 UL 796 UL 94 EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013 CFR47 Part 15 Subpart B Class B ICES-003 Class B AS/NZS CISPR 22:2009 +A1:2010 CNS 13438 (2006) Class B CNS 15663 KN32 Class B KN35 VCCI V-3 (2015-04) EN 55024:2010(EN 61000-4-2) FCC
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
