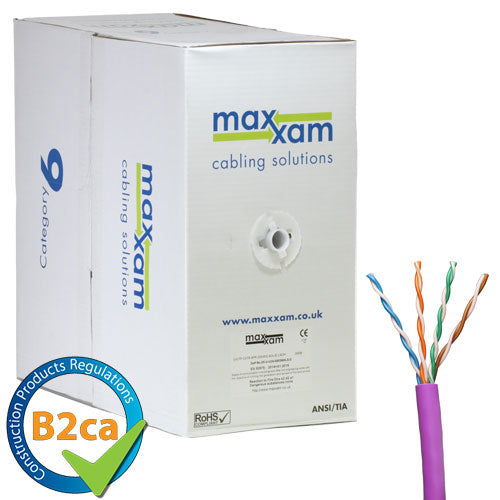

Cablenet Cat6 Violet U/UTP LSOH 23AWG Solid CPR B2ca Cable 305m Reel in Box

Cat6 Violet U/UTP LSOH 23AWG Solid CPR B2ca Cable 305m Reel in Box

Key Features

• Cat6 U/UTP Solid Core Cable
• Available in a wide range of colours
• Metre Marked - For Easy Measuring
• B2ca CPR Compliant
• Supplied as a reel in a box

Description

The Maxxam Cat6 U/UTP 4 pair Unshielded Cable offers Cat6 standards compliant performance and supports high speed protocols up to 1G Ethernet.

The cable can be used for permanent installations and flood wiring of buildings and supports all the IP applications designed to run over Cat6.
The U/UTP construction consists of eight colour coded 23AWG polyethylene insulated conductors which are twisted together into 4 pairs and placed around a central plastic separator that ensures excellent NEXT performance.
The overall diameter of just 6.1mm enables tighter bend radii and facilitates the installation of more cables in a given size of containment.
Supplied in a 305m Reelex Box, multiple cables are easily installed without the need for axle stands and the 305m to 1m cable metre marking makes it easy to determine precisely how much cable remains in a box.

It has a CPR Rating B2ca-s1a,d1,a1 with a Low Smoke Zero Halogen Violet Jacket to IEC60332-1.

Specifications

Technical details
Product colour	Violet
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable diameter	6.6 mm
Features
Product colour	Violet
Conductor material	Copper
Connector gender	No
AWG wire size	23
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable shape	Round
Connector 2 gender	No
Connector 1 gender	No
Cable fire class	B2ca
Other features
Cable diameter	6.6 mm
