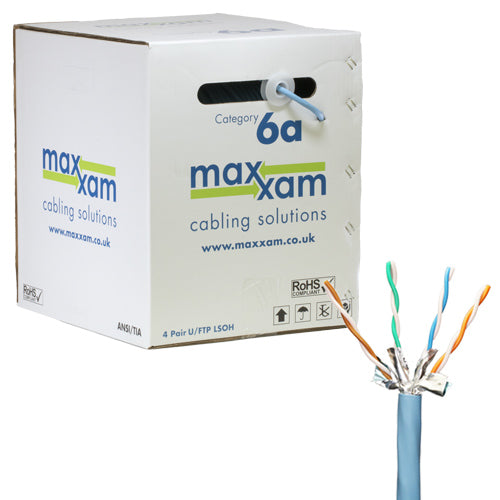

Cablenet | Cat6a | Ice Blue | U FTP | LSOH | 23AWG Solid CPR Dca Cable | 305m Reel in Box

Cat6a Ice Blue U/FTP LSOH 23AWG Solid CPR Dca Cable 305m Reel in Box The Maxxam Cat6a U/FTP 4 pair shielded cable offers Cat6a standards compliant performance and supports high speed protocols up to 10G Ethernet.

Key Features

• Cat6a U/FTP Solid Core Cable
• Ice Blue Sheath
• Metre Marked - For Easy Measuring
• Dca CPR Compliant
• Supplied as a reel in a box

Description

The Maxxam Cat6a U/FTP 4 pair shielded cable offers Cat6a standards compliant performance and supports high speed protocols up to 10G Ethernet.

The cable can be used for permanent installations and flood wiring of buildings and supports all the IP applications designed to run over Cat6a.
The U/FTP construction consists of eight colour coded 23AWG polyethylene insulated conductors which are twisted together into 4 individually shielded pairs which ensures excellent NEXT performance.
Supplied as a 305m Reel in a Box, multiple cables are easily installed without the need for axle stands and the 305m to 1m cable metre marking makes it easy to determine precisely how much cable remains in a box.

It has a CPR Rating Dca-s1a,d1,a1 with a Low Smoke Zero Halogen Ice Blue Jacket to IEC60332-1.

Specifications

Technical details
Product colour	Blue
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable diameter	7.3 mm
Features
Product colour	Blue
Conductor material	Copper
Connector gender	No
AWG wire size	23
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable shape	Round
Connector 2 gender	No
Connector 1 gender	No
Cable fire class	Dca
Packaging data
Package type	Box
Other features
Cable diameter	7.3 mm
Package type	Box
