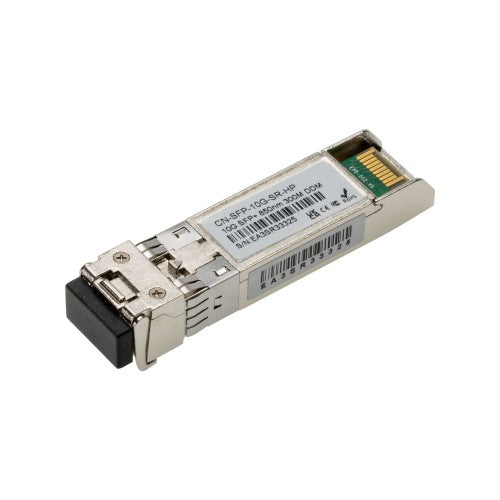

10GBASE-SR SFP+ MMF 300m LC HP/Aruba Compatible
The SFP+ SR module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential.
Data lines are internally AC coupled. The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI.
SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector.
Key Features
- Optical interface compliant with IEEE802.3ae
- Electrical interface compliant with SFF-8431
- Hot Pluggable
- 850nm VCSEL transmitter, PIN photo-detector
- Maximum link length of 300m on 2000MHz/km MMF
Description
This 850nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125μm or 62.5/125μm multimode optical fibre.The SFP+ SR module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential.
Data lines are internally AC coupled. The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI.
SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 840 nm |
| Tx wavelength (max) | 860 nm |
| Rx wavelength (min) | 770 nm |
| Rx wavelength (max) | 860 nm |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Country of origin | China |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | HP |
| Features | |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | HP |
| Form factor | SFP+ |
| Country of origin | China |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Logistics data | |
| Country of origin | China |
-
