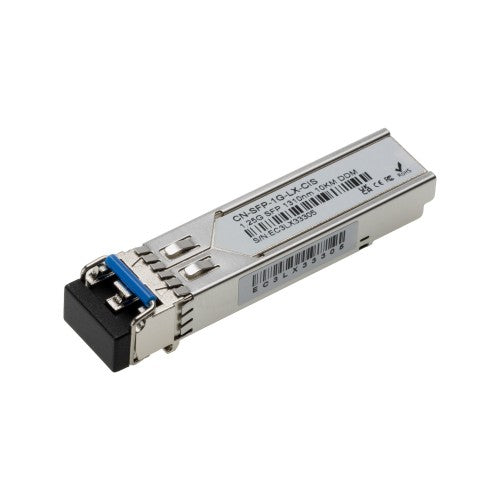

Cablenet CN-SFP-1G-LX-CIS network transceiver module Fiber optic 1000 Mbit/s 1310 nm

SKU CN-SFP-1G-LX-CIS
£4.83
£4.83
Excluding taxes
1GBASE-LX SFP SMF 10km LC Cisco Compatible

Key Features

  • Support for multi-gigabit data rates up to 10Gbps
  • Data rates backward compatible to 1Gbps
  • Hot-pluggable SFP 20 PIN footprint
  • Improved Pluggable Form Factor (IPF)
  • Compliant for enhanced EMI/EMC performance

Description

The SFP transceivers are high-performance, cost-effective modules supporting a data rate of 1.25Gbps with a transmission distance of up to 10KM over 9/125µm (singlemode) optical fibre.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
For further information, please refer to SFP MSA.

Specifications

Performance
SFP transceiver type Fiber optic
Tx wavelength (min) 1270 nm
Tx wavelength (max) 1360 nm
Rx wavelength (min) 1260 nm
Rx wavelength (max) 1620 nm
Maximum transfer distance 10000 m
Wavelength 1310 nm
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Yes
Multi-mode fiber (MMF) supported No
SFP transceiver standard LX
Country of origin China
Product colour Metallic
Plug and Play Yes
Hot-swap Yes
Brand compatibility Cisco
Features
Product colour Metallic
Plug and Play Yes
Hot-swap Yes
Brand compatibility Cisco
Form factor SFP
Country of origin China
Network
SFP transceiver type Fiber optic
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Technical details
Plug and Play Yes
Hot-swap Yes
Maximum transfer distance 10000 m
Wavelength 1310 nm
Logistics data
Country of origin China
