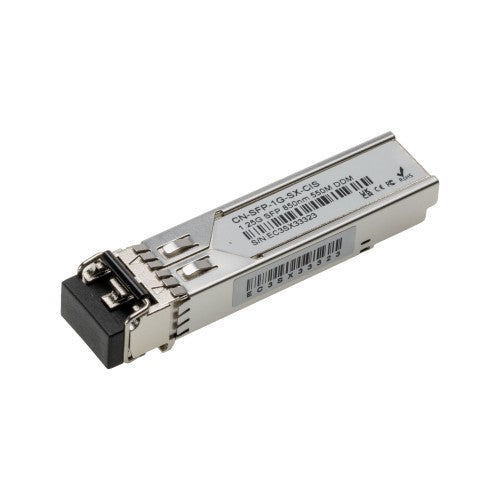

1GBASE-SX SFP MMF 550m LC Cisco Compatible
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and a MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
For further information, please refer to SFP MSA.
Key Features
- 1.25Gbps SFP Optical Transceiver, 550m tx distance
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with LC duplex port
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Description
The SFP transceivers are high-performance, cost-effective modules supporting a data-rate of 1.25Gbps with a transmission distance of up to 550m over 50/125µm optical fibre (300m over 62.5/125µm).The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and a MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
For further information, please refer to SFP MSA.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 830 nm |
| Tx wavelength (max) | 860 nm |
| Rx wavelength (min) | 770 nm |
| Rx wavelength (max) | 860 nm |
| Fiber optic connector | LC |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Country of origin | China |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Cisco |
| Features | |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Cisco |
| Form factor | SFP |
| Country of origin | China |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Logistics data | |
| Country of origin | China |
-
