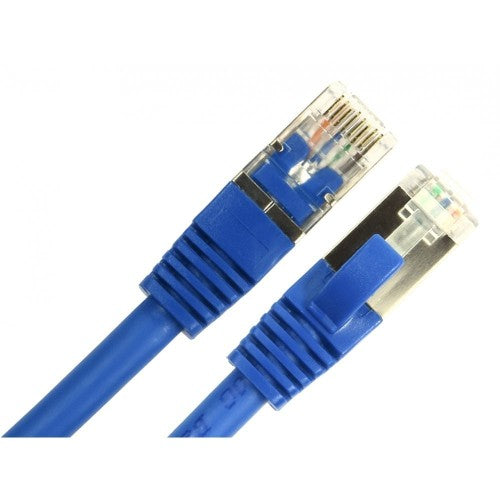

Cables Direct GRT-20B networking cable Blue 20 m Cat8.1 S/FTP (S-STP)

20m CAT8.1 LSZH 26AWG Networking Cable, Blue

Key Features

• LSZH: low Smoke Zero Halogen cable reduces the amount of toxic and corrosive gas emitted during a fire
• Supports 25/40 Gigabit Ethernet supports 25/40GE
• S/FTP (or S/STP): Screened and Foil (Shielded) Twisted Pair. Each individual pair is screened by foil and features an overall outer sheath. This shielding protects the cable from EMI (Electro-Magnetic Interference)
• Snagless Connectors: The connectors feature a bubble which protects the locking clip on the RJ45 from damage or being snapped off during transport or installation
• Flush Moulded Strain Relief: The flush moulded design allows the patch cables to be installed side by side in high-density network switches. The strain relief allows the cables to move without damaging the cable or breaking away from the connector while it is plugged in a device
• This product has been tested and found to comply with the applicable electrical transmission characteristics specified in: ISO/IEC 11801 ED.2 and ANSI/TIA-568-C.2
• IEC 60332-1-2, RoHS Compliant and 3P Verified

Description

Category 8.1 Ethernet cable, commonly referred to as Cat8, is a cable standard for 25/40 Gigabit Ethernet. The cable standard provides performance of up to 2000MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet), 10GBASE-T (10 Gigabit Ethernet), 25GBASE-T (25 Gigabit Ethernet) & 40GBASE-T (40 Gigabit Ethernet). It is backwards compatible with previous standards such as Cat6a, Cat6, Cat5e and Cat5.

Specifications

Technical details
Product colour	Blue
Cable standard	Cat8.1
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	40GBase-T
Data transfer rate	40000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	20 m
Doesn't contain	Halogen
Compliance certificates	RoHS
Features
Product colour	Blue
Snagless cable boot	Yes
Conductor material	Copper
AWG wire size	26
Cable standard	Cat8.1
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	40GBase-T
Data transfer rate	40000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	20 m
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Cable shape	Round
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Packaging data
Quantity per pack	1 pc(s)
