Cables Direct

Cables Direct HDPORT-0054K-CABREV video cable adapter 0.15 m HDMI Type A (Standard) DisplayPort + USB Type-A Black

SKU HDPORT-0054K-CABREV
£17.13
£17.13
Excluding taxes

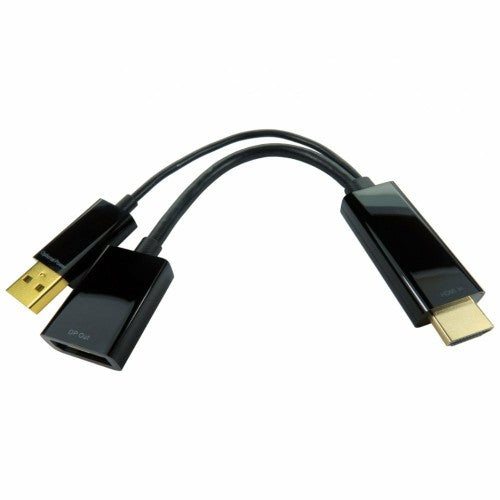

15cm Leaded HDMI (M) to DisplayPort (F) Adapter - 4K 60Hz

Key Features

  • Support HDMI input, DisplayPort output with USB-A port for power supply
  • HDMI
  • Supports 8-bit Deep colour
  • Supports HDCP 1.4 / 2.2
  • Supports HDR
  • Supports Status and Control Data Channel (SCDC)
  • Supports resolutions up to 4K x 2K @ 60Hz for 4:4:4 format
  • DisplayPort
  • DP 1.2a compliant
  • Supports four lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) data rate
  • Supports Hot-Plug detect
  • USB-A
  • Connect this port to the source with a USB-A female port or to a USB Power Adapter for supplying extra power to the product in the event that the HDMI source can’t supply enough power (under 300mA)

Description

The HDPORT-0054K-CABREV is a HDMI to DisplayPort adapter which allows you to transmit a video signal from a HDMI source (PC etc..) to a DisplayPort monitor. The product supports DisplayPort v1.2 and resolutions up to 4096 x 2160 @ 60Hz. It is also equipped with USB-A port to supply power in the event the HDMI source doesn’t provide enough power.

Specifications

Features
Colour depth 8 bit
DisplayPort version 1.2a
Product colour Black
Cable length 0.15 m
Connector 1 HDMI Type A (Standard)
Connector 2 DisplayPort + USB Type-A
Connector 1 gender Male
Connector 2 gender Male/Female
Maximum resolution 4096 x 2160 pixels
Supported graphics resolutions 3840 x 2160, 4096 x 2160
HDCP Yes
Connector 1 form factor Straight
Connector 2 form factor Straight
Maximum refresh rate 60 Hz
HDCP version 1.4/2.2
High Dynamic Range (HDR) supported Yes
Colour sampling 4:4:4
Packaging data
Quantity per pack 1 pc(s)
Packaging content
Quantity per pack 1 pc(s)
