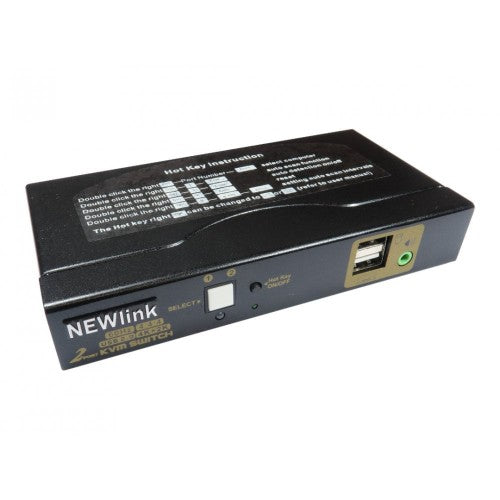

NEWlink Two Port HDMI v2.0 & USB KVM Switch
Installation is simple

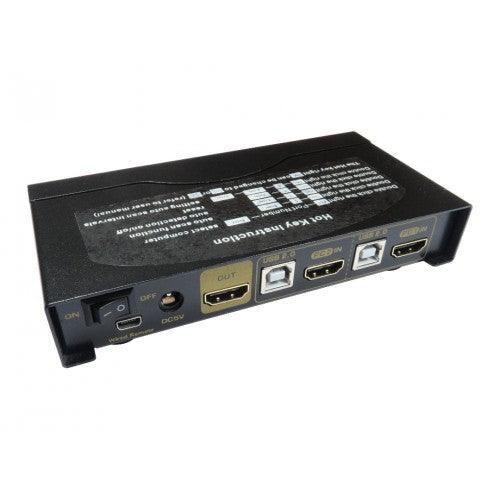

1. Connect computers to USB ports with a USB type A to type B cable to the KVM
2. Connect HDMI cables to the displays and KVM
3. Connect USB keyboard and mouse to the relevant ports on the back of KVM
4. The front USB port can be used for other USB devices
Key Features
- One USB console controls up to 4 HDMI interface computers, depending on model
- Switch Mode: a. Wire remote push button b. Keyboard Hot-key switch c. Mouse switch d. Button switch on front panel
- Supports 4096 x 2160p @ 60Hz
- OS Support: Windows 10, 7 and Mac OS
- Plug and Play
- Supports HDCP and auto EDID
- Auto switch if one computer is unpowered
- Supports Auto scan function
Description
KVM switches allow you to control multiple computers from one keyboard, video monitor and mouse. The KVM supports USB mice, keyboards and HDMI displays.Installation is simple
1. Connect computers to USB ports with a USB type A to type B cable to the KVM
2. Connect HDMI cables to the displays and KVM
3. Connect USB keyboard and mouse to the relevant ports on the back of KVM
4. The front USB port can be used for other USB devices
Specifications
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A, USB Type-B |
| HDMI version | 2.0 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 3 |
| DC-in jack | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Automatic switching | Yes |
| Technical details | |
| Product colour | Black |
| Plug and Play | Yes |
| LED indicators | Yes |
| Automatic switching | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Automatic switching | Yes |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Packaging content | |
| Cables included | HDMI, USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Other features | |
| Automatic switching | Yes |
-
