Cisco

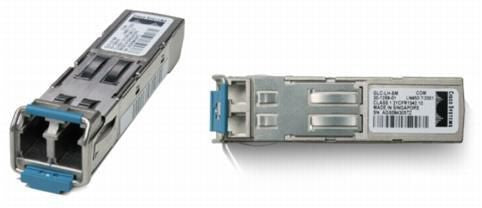

Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm

SKU GLC-LX-SM-RGD=
£675.70
£675.70
Excluding taxes
1000BASE-LX/LH Long Wavelength; Rugged

Description

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis. 1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.

Specifications

Network
Fiber optic connector LC, PC
Cabling technology 100BASE-LX/LH
Maximum data transfer rate 1000 Mbit/s
Technical details
Maximum transfer distance 10000 m
Wavelength 1310 nm
Dimensions (WxDxH) 13.4 x 56.5 x 8.5 mm
Cabling technology 100BASE-LX/LH
Performance
Fiber optic connector LC, PC
Maximum transfer distance 10000 m
Wavelength 1310 nm
Cabling technology 100BASE-LX/LH
Maximum data transfer rate 1000 Mbit/s
Maximum transfer distance (Single-mode) 10000 m
Maximum transfer distance (Multi-mode) 550 m
Harmonized System (HS) code 85369010
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 75 g
Other features
Transmit power range -3 - -9.5 dBmW
Dimensions (WxDxH) 13.4 x 56.5 x 8.5 mm
