Cisco

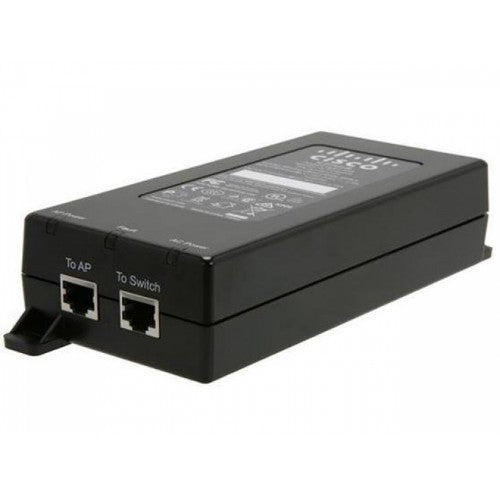

Cisco AIR-PWRINJ6-RF PoE adapter Gigabit Ethernet 55 V

SKU AIR-PWRINJ6-RF
£54.57
£54.57
Excluding taxes
Power injector

Description

The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

The single-port PoE injector provides up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is for use with the Cisco Aironet 2800 series and 3800 series access points.

Specifications

Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Cable types supported Cat5
Power over Ethernet (PoE) voltage 55 V
Features
Product colour Black
Safety UL 60950-1, IEC/EN 60950-1
LED indicators Yes
Mean time between failures (MTBF) 100000 h
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Certification FCC Part 15.107, 15.109 Class B ICES-003 Class B (Canada) AS/NZS 3548 Class B VCCI Class B EN 301.489-1, 17 EN 55022 EN 55024 EN 60950 UL 60950 CSA C22.2 No. 60950 IEC 60950
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
RJ-45 input ports 1
RJ-45 output ports 1
Power
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) voltage 55 V
Input current 0.67 A
AC adapter input voltage 100 - 240 V
AC adapter frequency 50 / 60 Hz
Certificates
Certification FCC Part 15.107, 15.109 Class B ICES-003 Class B (Canada) AS/NZS 3548 Class B VCCI Class B EN 301.489-1, 17 EN 55022 EN 55024 EN 60950 UL 60950 CSA C22.2 No. 60950 IEC 60950
Compliance certificates CE, RoHS, WEEE
Sustainability
Sustainability compliance Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 0 - 90%
Operating temperature (T-T) -20 - 40 °C
Operating relative humidity (H-H) 0 - 90%
Technical details
Safety UL 60950-1, IEC/EN 60950-1
Power over Ethernet (PoE) Yes
Input current 0.67 A
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Sustainability compliance Yes
Compliance certificates CE, RoHS, WEEE
Indication
LED indicators Yes
