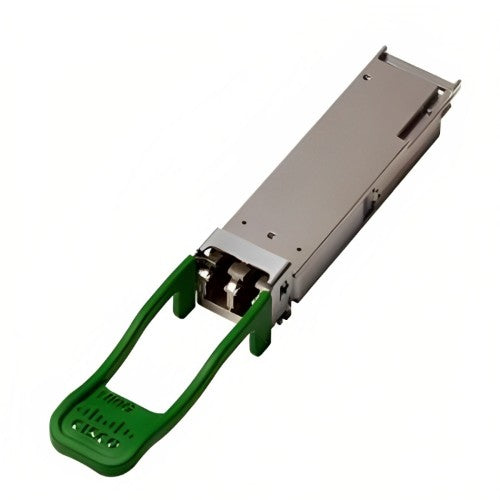

Cisco QSFP-100G-SM-SR= network transceiver module Fiber optic 100000 Mbit/s 1331 nm

100GBASE CWDM4 Lite QSFP Transceiver 2km

Description

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.

Cisco QSFP-100G-SM-SR
The Cisco QSFP-100G-SM-SR QSFP module supports link lengths of up to 2 kilometers over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The operating temperature range is from +10 to +60°C with an optical link budget of 4.2 decibels. This 4.2-decibel link budget offers the ability to support the loss from patch panels in the link in a data center environment. QSFP 100G SM-SR is interoperable with QSFP-100G-CWDM4-S.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP
Ethernet interface type	100 Gigabit Ethernet
Technical details
Hot-swap	Yes
Maximum transfer distance	2000 m
Wavelength	1331 nm
Tx power (min)	-6.9 dBmW
Tx power (max)	2.5 dBmW
Rx power (min)	-11.1 dBmW
Rx power (max)	2.5 dBmW
Sustainability compliance	Yes
Warranty period	5 year(s)
Compliance certificates	RoHS, WEEE
Performance
Product colour	Green, Metallic
Hot-swap	Yes
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Maximum transfer distance	2000 m
Wavelength	1331 nm
Tx power (min)	-6.9 dBmW
Tx power (max)	2.5 dBmW
Rx power (min)	-11.1 dBmW
Rx power (max)	2.5 dBmW
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP
Single-mode fiber (SMF) supported	Yes
Ethernet interface type	100 Gigabit Ethernet
SFP transceiver standard	SR
Fiber ethernet cabling technology	100GBASE
Features
Product colour	Green, Metallic
Hot-swap	Yes
Power
Power consumption (typical)	3.5 W
Operational conditions
Operating temperature (T-T)	10 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
