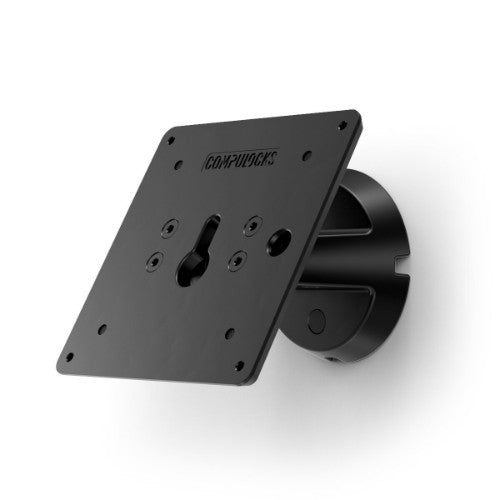

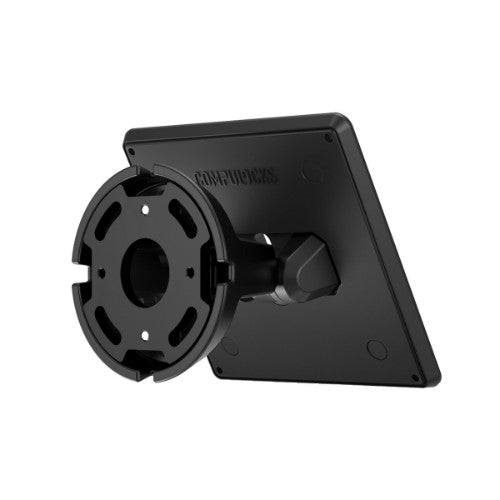

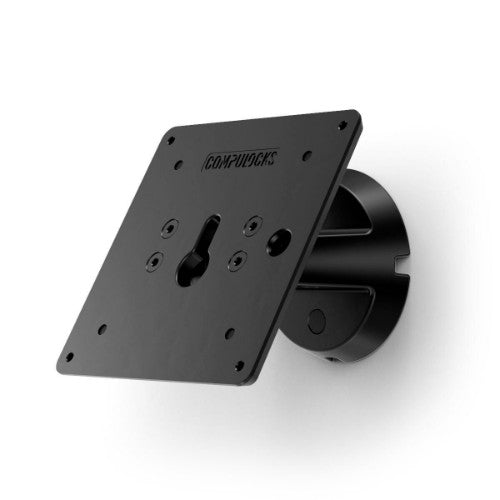

Compulocks VESA Tilting Wall Mount - Black

VESA Tilting Wall Mount - Black

Key Features

• 75x75mm and 100x100 mm VESA-compatible mount
• Through arm cable management
• Portrait or landscape mountable
• Secure directly onto a wall

Description

Introducing the Bow VESA Tilting Wall Mount, a versatile and secure display solution.

Compatible with all of our VESA 100mm and 75mm enclosures, this mount offers tilting and panning for optimal viewing angles.
The Bow mount is ADA compliant, positioning your display just 4 inches from the wall with an enclosure.
It features easy access for hinge tension adjustments, ensuring stability and screen lock. For added security, a lock slot secures our universal tablet holders like Magnetix.

The mount's design includes a hidden cable passage through the arm, four cable exit options from the base, and an option to route the cable through the center of the base plate for seamless concealment.
Crafted from durable aluminum, the Bow mount can be installed on any flat surface, making it ideal for secure, interactive display setups with flexible mounting options.

Specifications

Mounting
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Screws
Distance to the wall (min)	10.2 cm
Distance to the wall (max)	10.2 cm
Maximum screen size	68.6 cm (27")
Ergonomics
Cable management	Yes
Height adjustment	No
Number of arms	1
Tilt adjustment	Yes
Design
Easy to install	Yes
Product colour	Black
Orientation	Landscape/Portrait
Technical details
Mounting type	Wall
Distance to the wall (min)	10.2 cm
Distance to the wall (max)	10.2 cm
Product colour	Black
Cable management	Yes
Warranty period	1 year(s)
Packaging content
Manual	Yes
Other features
Compatibility	100mm x 100mm and 75mm x 75mm VESA Compatible Mount
Warranty period	1 year(s)
Mounting type	Wall
Mounting	Screws
Packaging data
Manual	Yes
