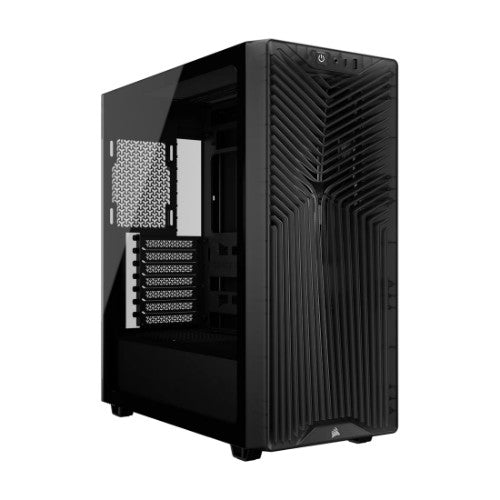

Corsair 3200D RS Midi Tower Grey

3200D RS Mid-Tower PC Case

Key Features

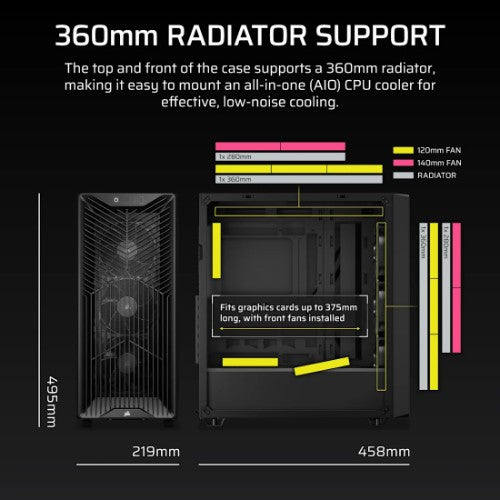

• Supports 360mm AIO radiators in the top or front
• 375mm GPU clearance (400mm with fans removed)
• Abundant cooling options with 9x 120mm fan mounts
• 3x RS120 Fans included

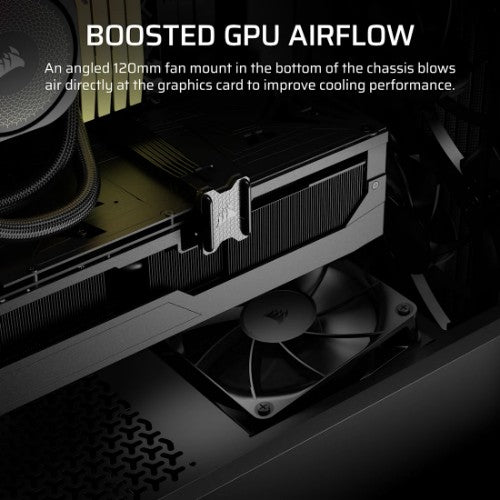

• Angled bottom fan mount for direct GPU cooling
• Built-in GPU Anti-sag Stabilization Arm
• Compatible with reverse-connector motherboards

Description

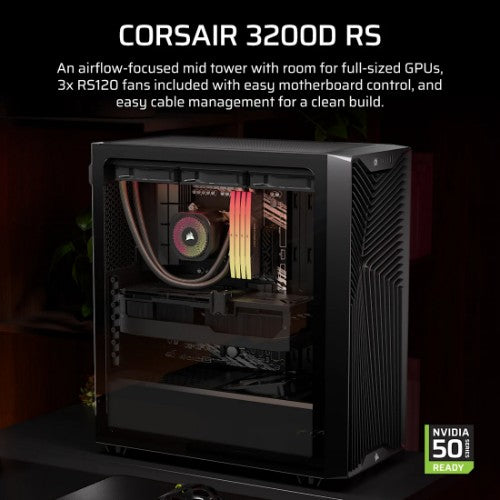

ROOM FOR THE BIGGEST GPUs
The 3200D is a spacious mid-tower chassis designed for modern GPUs. With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120mm fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.

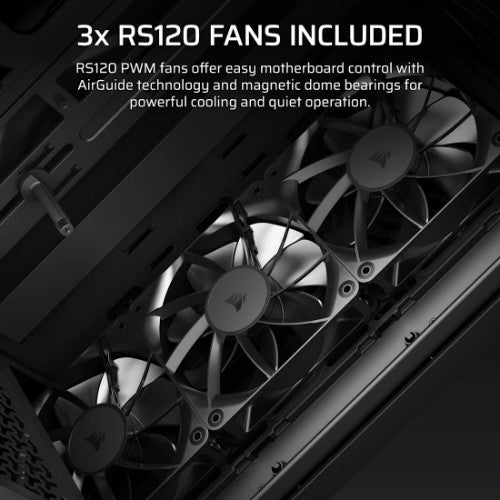

THREE RS120 FANS INCLUDED
RS120 PWM fans minimize friction and mechanical noise with its magnetic dome bearing, achieving a balance between high airflow performance with a low acoustic footprint.

DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.

DESIGNED FOR SUPER-CLEAN BUILDS

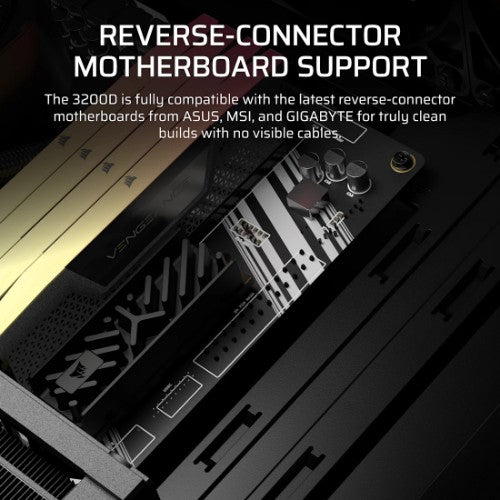

Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.

BUILT FOR THE REAL WORLD
Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, Mini-ATX, micro ATX
Supported HDD sizes	3.5,2.5"
Suitable for	Gaming
Side window	Yes
Product colour	Grey
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	40 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Midi Tower
Material
Material	Plastic, Steel
Indication
Illumination	No
Design
Anti-dust filter	Yes
Material	Plastic, Steel
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, Mini-ATX, micro ATX
Suitable for	Gaming
Side window	Yes
Illumination	No
Product colour	Grey
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	40 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Midi Tower
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	1
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	360,280,240 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	360,280,240 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	3.5,2.5"
Weight & dimensions
Width	219 mm
Depth	458 mm
Height	495 mm
Weight	8.5 kg
