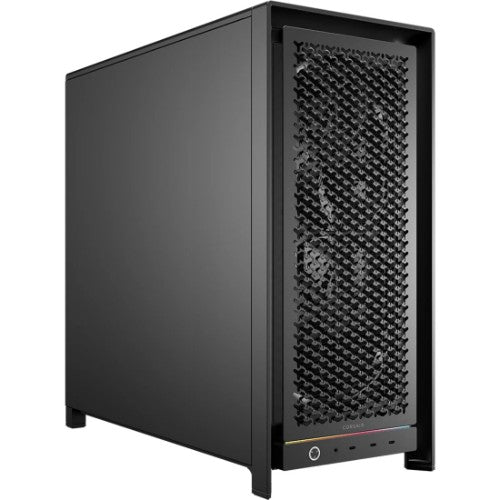

Corsair FRAME 5000D WORKSTATION Midi Tower Black

542x556x250, Black, Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic, Mid-Tower

Key Features

• A roomy chassis with 9 PCI slots for multi-GPU builds
• Steel side panels feature sound dampening material
• GPU immobilization and anti-sag options
• Support for SSI-EEB/CEB, reverse-connector motherboards
• Dual 200mm intake fans for quiet, powerful airflow
• Optional UV printing and custom hardware configurations available

Description

SUPERSIZED
FILL IT UP WITH THE LATEST HARDWARE
The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.

GPU OPTIMIZED
BUILT FOR DEMANDING WORKLOADS
The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.

PEACEFULLY POWERFUL
BUILT TO ELIMINATE NOISE
The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.

EXPANSION IS ENCOURAGED
PLENTIFUL STORAGE
Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.

DIMENSIONS
The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.

FAN CAPACITY

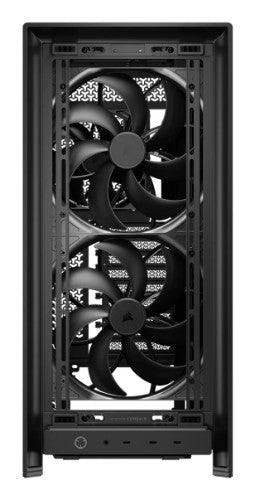

Includes 2x 200mm intake fans and 1x 140mm exhaust fan with a total of 9x 120mm or 140mm fan mounts for flexible cooling options on every surface of the interior.

RADIATOR CAPACITY
Mount a 360mm or 280mm radiator in the front and a 360mm or 480mm radiator on top for enhanced airflow

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.

TAILOR MADE

MODULAR AND CUSTOMIZABLE
The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	6
Supported motherboard form factors	ATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Supported HDD sizes	3.5"
Suitable for	Gaming
Side window	Yes
Number of HDDs supported	2
Product colour	Black
Number of expansion slots	8
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	45 cm
Type	PC
Form factor	Midi Tower
Material
Material	Plastic, Steel, Tempered glass
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Plastic, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	6
Supported motherboard form factors	ATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Suitable for	Gaming
Side window	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	8
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	45 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Display
Built-in display	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB Type-C ports quantity	3
Cooling
Front radiator sizes supported	240,280,360 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	240,280,360,420 mm
Front fans installed	2x 200 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,200 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	4
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Side radiator sizes supported	240,280,360 mm
Suitable location	Computer case
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	3.5"
Number of HDDs supported	2
SSD form factor	2.5"
Weight & dimensions
Width	250 mm
Depth	556 mm
Height	542 mm
Weight	15.5 kg
