Corsair HXi Series HX1500i power supply unit 1500 W 24-pin ATX ATX Black

HX1500i Fully Modular Ultra-Low Noise Platinum ATX 1500 Watt PC Power Supply (UK)

Key Features

• Compatible with next-gen GPUs
• Dual 12V-2x6 cables
• Fluid Dynamic Bearing fan with Zero RPM mode
• 105°C rated 100% Japanese electrolytic capacitors
• 10-year warranty
• Intel® ATX 3.1 certified, PCIe 5.1 compatible

Description

50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.

POWERFUL CONNECTIONS
With dual 12V-2x6 cables and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.

YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.

CYBENETICS PLATINUM CERTIFIED
Steady power output at up to 90% efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.

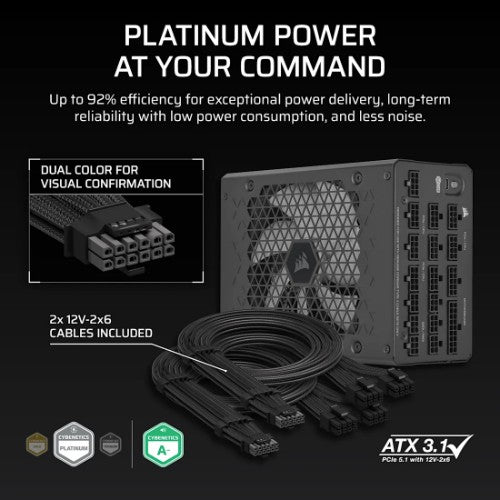

Every HXi Series PSU is ready for high-end GPUs with two PCIe 5.1 12V-2x6 GPU power cables featuring dual-color connectors for visual confirmation of a secure connection.

QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

100% JAPANESE CAPACITORS
Sourced from world-renowned Japanese vendors, every HXi power supply features 100% industrial-grade electrolytic capacitors for unwavering reliability and a long lifespan.

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	14 cm
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	1500 W
Maximum input current (@220V)	10 A
AC input voltage	100 - 240 V
Input current	15 A
Maximum input current (@110V)	15 A
Combined power (+12V)	1500 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	125 A
Max output current (+5V)	25 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	850 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	2
Number of PATA power connectors	2
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	5
PCI Express connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC/Server
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Weight	5.26 kg
Certificates
80 PLUS certification	80 PLUS Platinum
