D-Link 1-port Mini-GBIC SFP to 1000BaseSX, 550m for all

SFP, LC, 1000Base‑SX, MMF, 850nm, 550m

Description

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

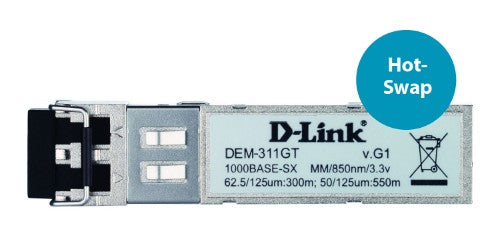

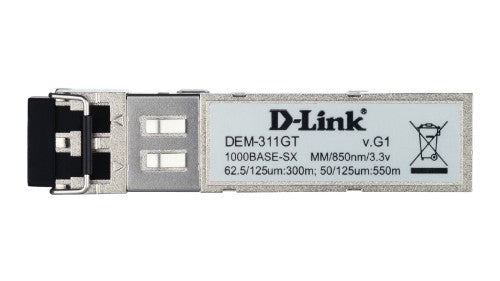

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3x
Maximum transfer distance	550 m
Wavelength	850 nm
Duplex system	Full
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Product colour	Metallic
Housing material	Metal
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Product colour	Metallic
Housing material	Metal
Hot-Plug support	Yes
Certification	MSA, RoHS
Power
Maximum voltage	6 V
Certificates
Certification	MSA, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 85 °C
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3x
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Weight & dimensions
Width	13.8 mm
Depth	57.2 mm
Height	8.5 mm
Package depth	131 mm
Package width	74 mm
Package height	49 mm
Package weight	64 g
Technical details
Package width	74 mm
Package height	49 mm
Hot-Plug support	Yes
Maximum transfer distance	550 m
Wavelength	850 nm
Duplex system	Full
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Packaging data
Package depth	131 mm
Package width	74 mm
Package height	49 mm
Package weight	64 g
Logistics data
Harmonized System (HS) code	85369010
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Shipping (inner) case gross weight	4.2 kg
