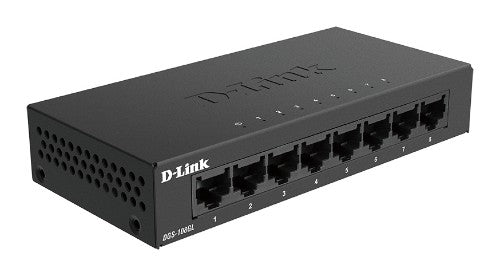

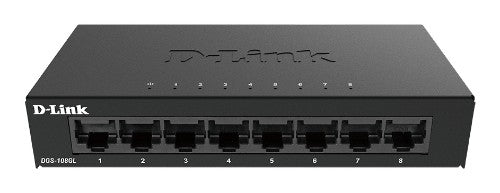

D-Link DGS-108GL 8-Port Gigabit Unmanaged Desktop Switch

8 x 10/100/1000 Mbps LAN, 16 Gbps, 14K MAC, 140 x 67 x 26 mm

Key Features

• 8 Gigabit Ethernet ports
• Metal casing
• Energy efficient
• Fanless
• Plug & Play Installation

Description

Effortless Gigabit networking.
Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.

Plug-and-play. Easily extend a network.
The DGS-108GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

Effortless traffic optimisation.
With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Designed for life, built to last.
The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Specifications

Management features
Switch type	Unmanaged
Web-based management	No
Quality of Service (QoS) support	Yes
Cloud-managed	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (1 Gbps)	1488000 pps
Jumbo frames	9216
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	11.9 Mpps
Design
Form factor	Desktop
Product colour	Black
Stackable	Yes
LED indicators	Activity, Link, Power
Housing material	Metal
Certification	CE; FCC; RoHS
Performance
Mean time between failures (MTBF)	1402428 h
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	4.31 W
Input current	1 A
DC input voltage	5 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	14.7 BTU/h
Weight & dimensions
Width	140 mm
Depth	67 mm
Height	26 mm
Weight	240 g
Technical details
Form factor	Desktop
Product colour	Black
Stackable	Yes
Mean time between failures (MTBF)	1402428 h
Housing material	Metal
Compliance certificates	CE, RoHS
Certificates
Certification	CE; FCC; RoHS
Compliance certificates	CE, RoHS
Indication
LED indicators	Activity, Link, Power
Logistics data
Harmonized System (HS) code	85176990
