The DeepCool CG530U 4F WH is a panoramic mid-tower PC case for builders who want to showcase their components and keep airflow in mind. It suits gaming and desktop builds using ITX, Micro-ATX or ATX motherboards, including supported reverse-connector ATX and Micro-ATX boards.

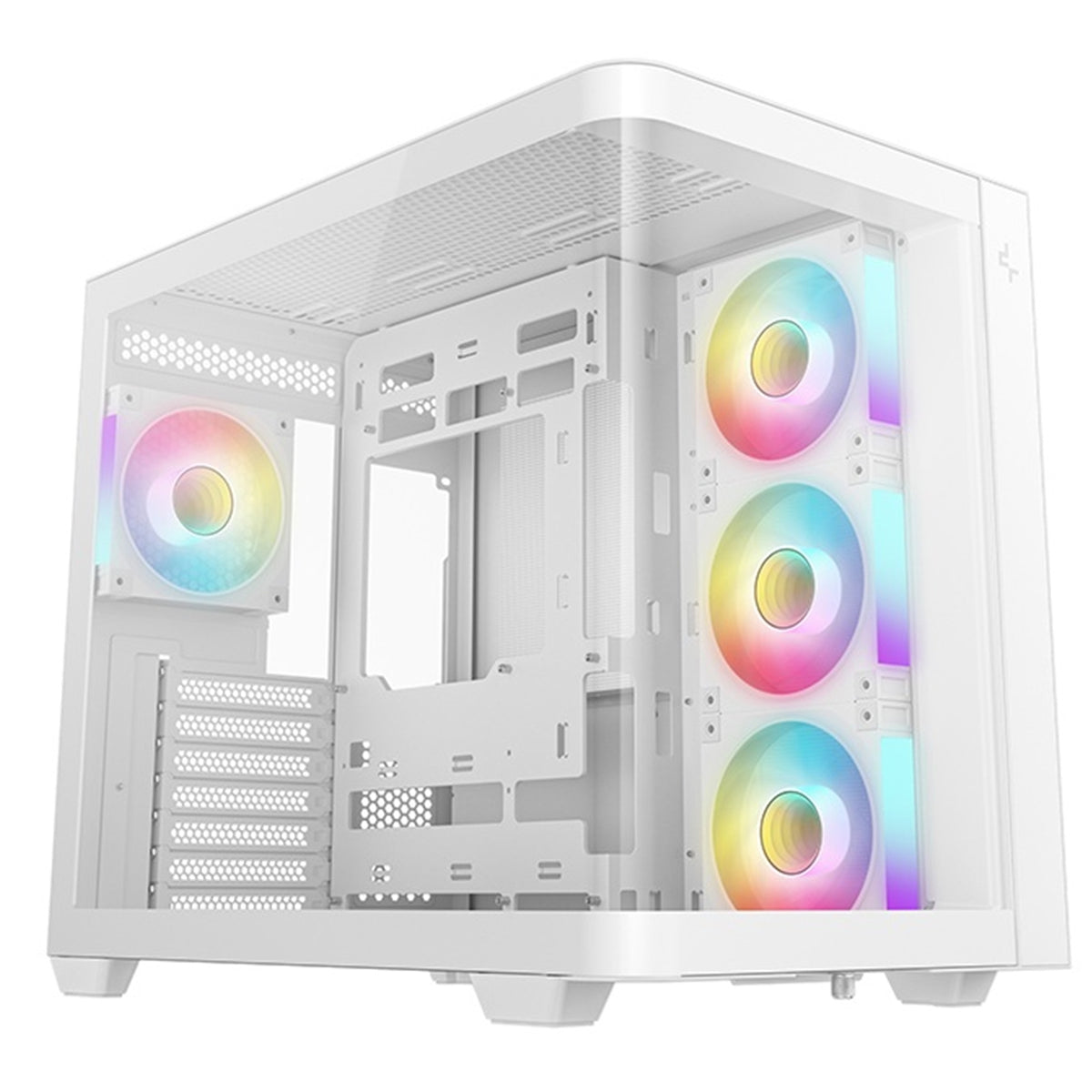

The CG530U 4F WH is a curved-glass panoramic case built on a dual-chamber design. Pre-installed with four ARGB fans, it comes ready for effective airflow and lighting.
Specification
| Specification | Detail |
|---|---|

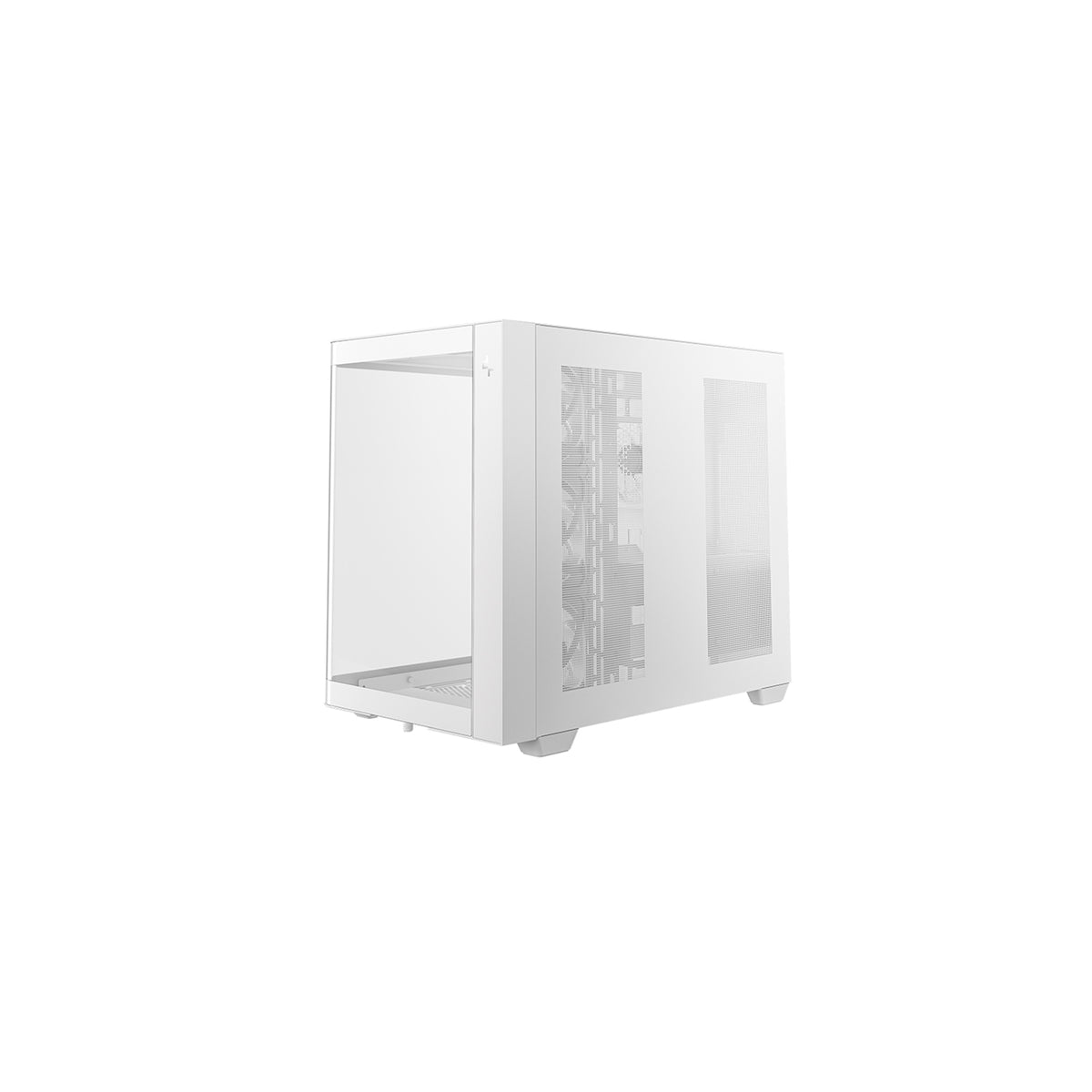

| SEAMLESS PANORAMIC VIEW | The CG530U 4F WH features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within. |

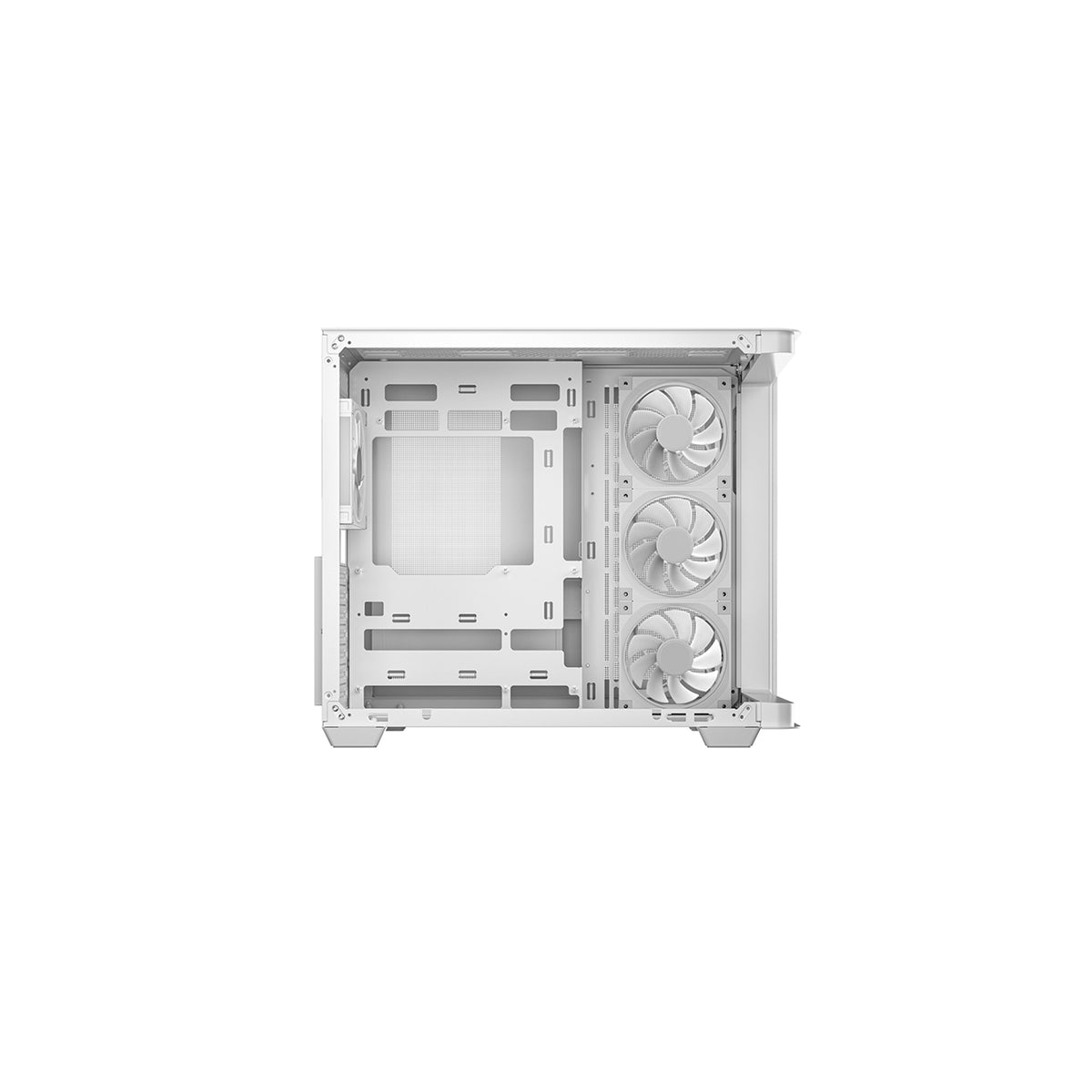

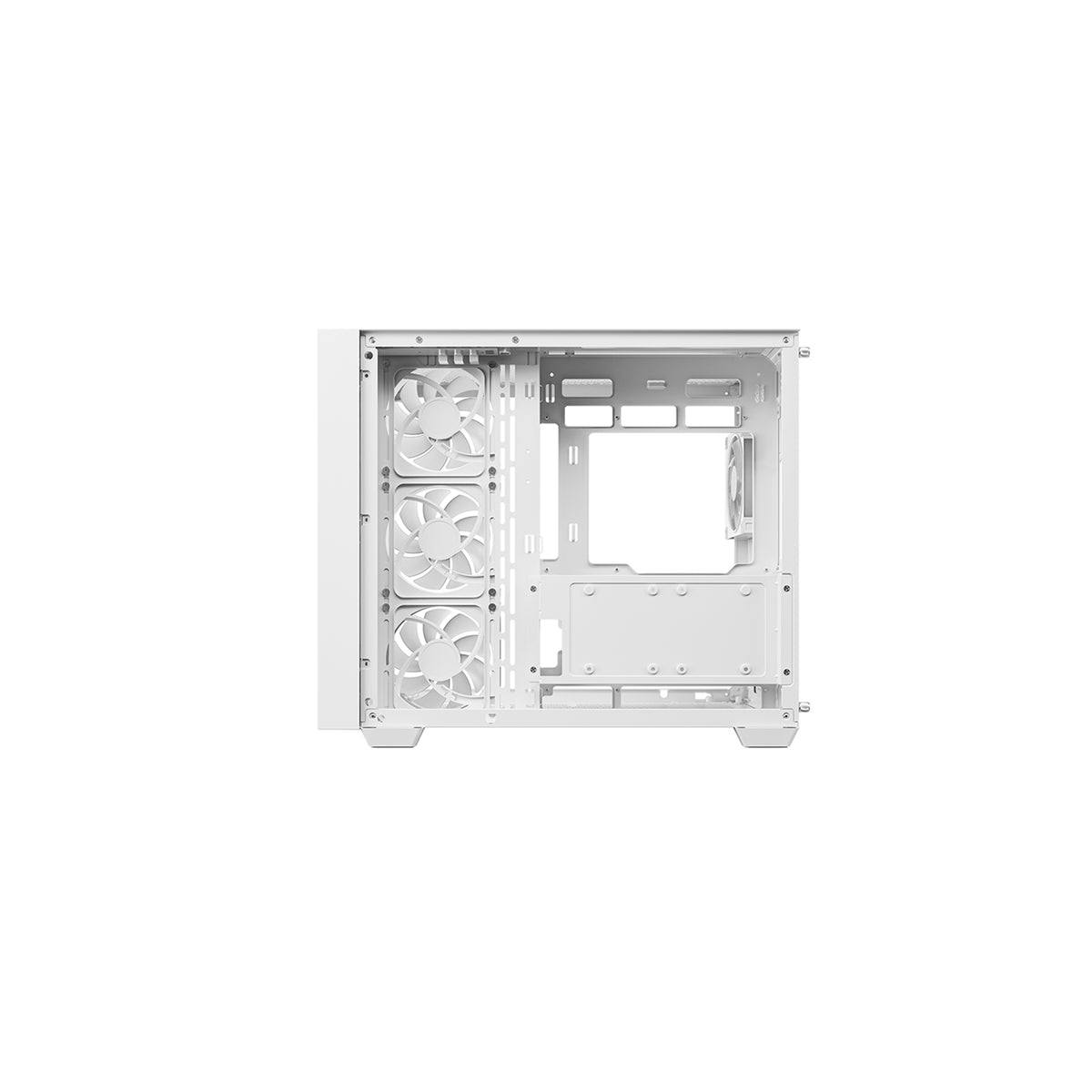

| READY TO FLOW | Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start. |
| EFFICIENT VENTILATION | A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case. |
| MAXIMUM COOLING CAPABILITIES | Never fear the heat with CG530U 4F WH's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load. |
| BROAD HARDWARE SUPPORT | Built to handle demanding hardware, the CG530U 4F WH supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds. |
| DETAILS THAT MATTER | Supports M-ATX and ATX reverse connector motherboards 45mm clearance for cable management Top and bottom dust filters included |

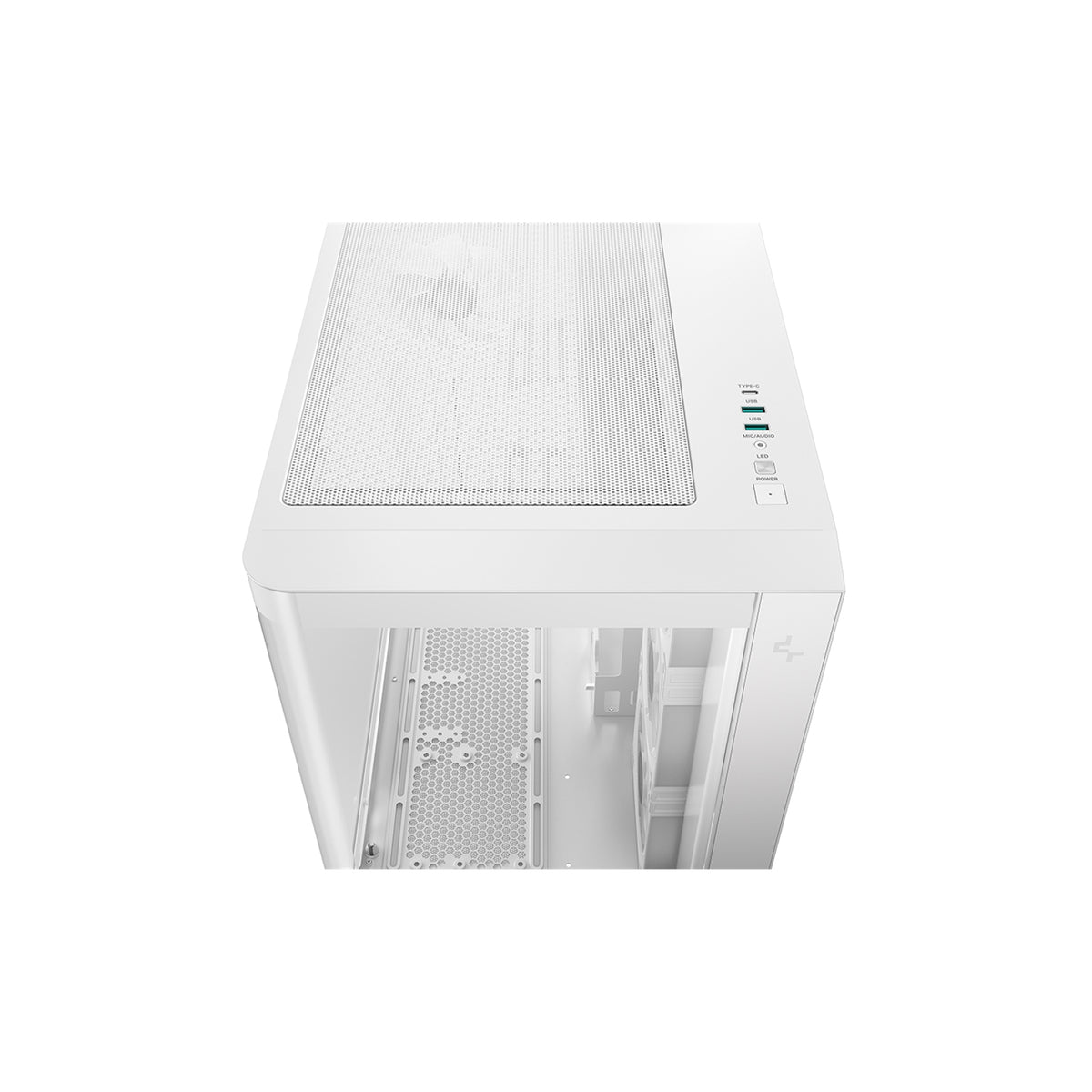

| EASY I/O ACCESS | The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack. |
| Product Dimensions | 475x285x380mm(LxWxH) |
| Net Weight | 7.3kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3x120mm Rear: 1x120mm |
| Fan Support | Front: NA Top: 3x120mm/2x140mm Side: 3x120mm/2x140mm Rear: 1x120mm Bottom: 3x120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit | 160mm |
| GPU Size Limit | 410mm |
| Power Supply Type | ATX PS2 (maximum length: 210mm)/SFX/SFX-L |
-
