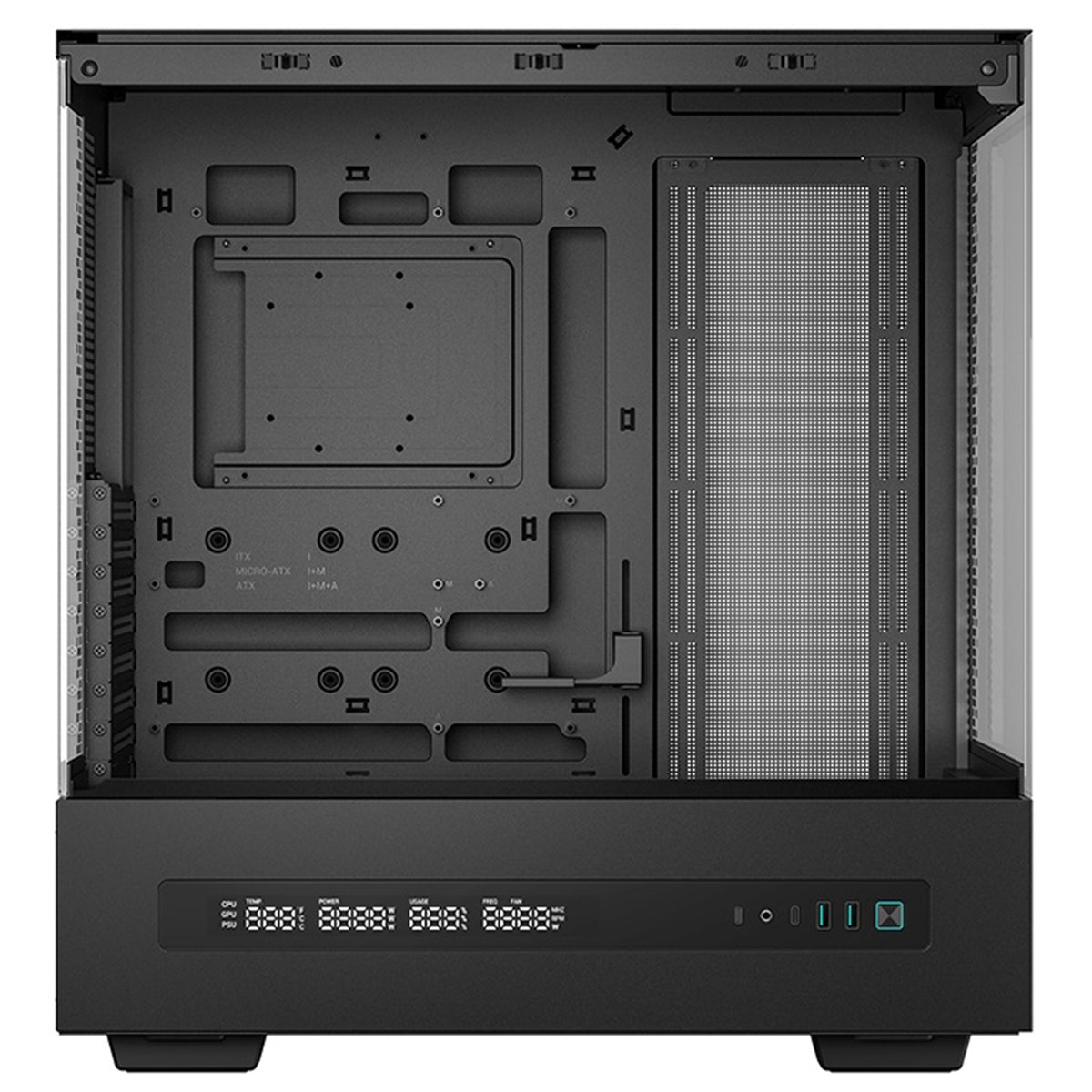

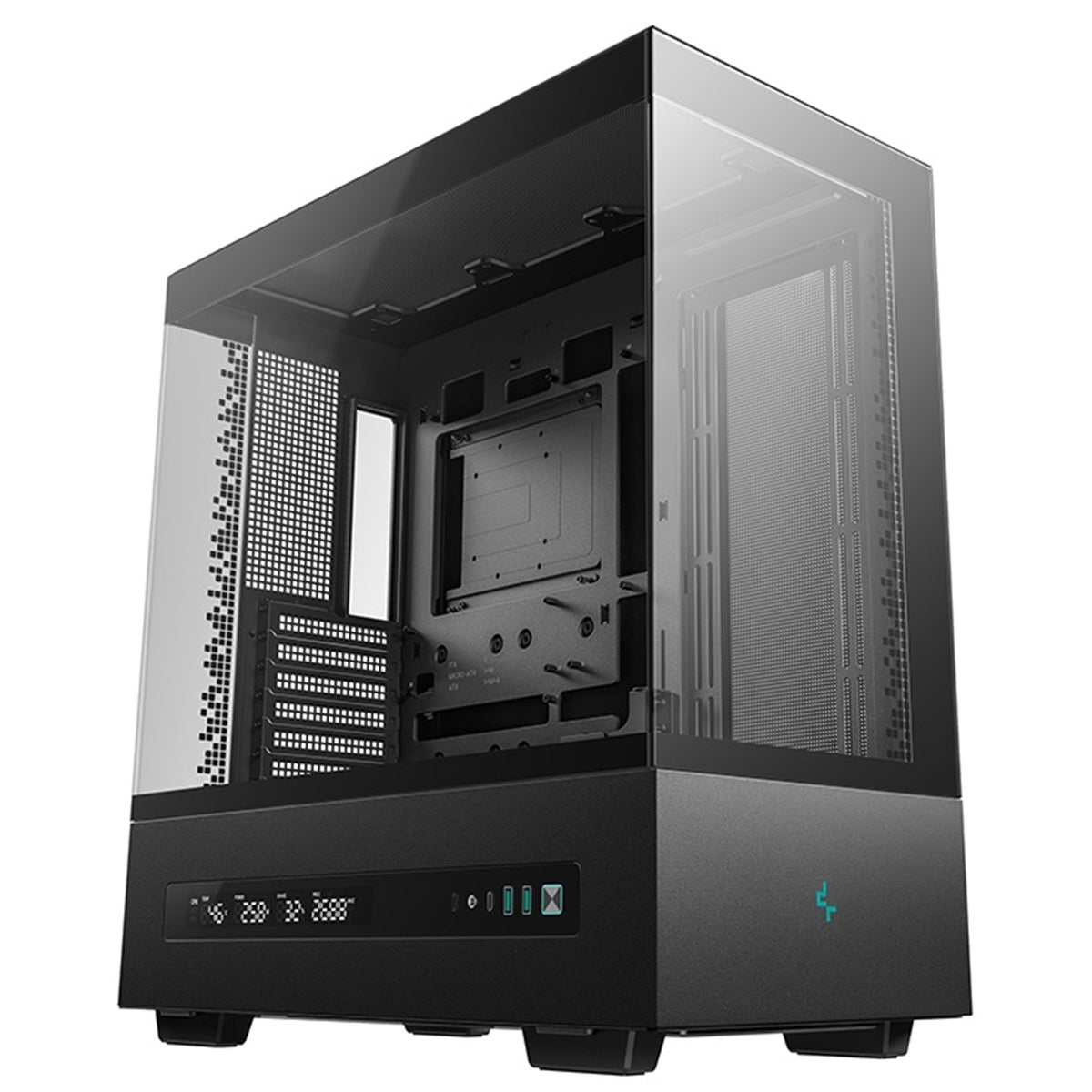

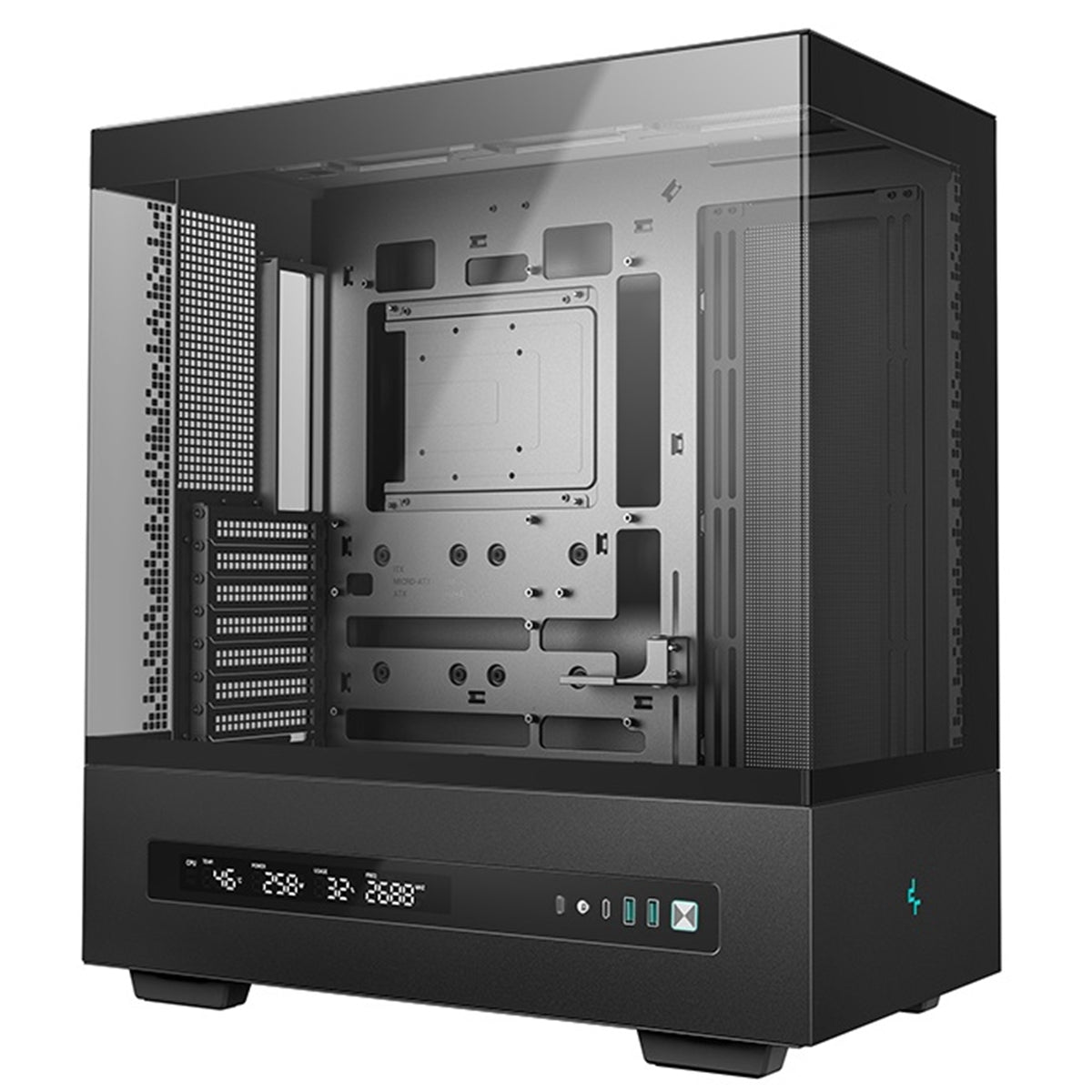

The DeepCool CH690 DIGITAL is a black ATX mid-tower case for gaming PCs and professional desktop builds. Its semi-glass panel gives a broad view of installed components, while support for Mini-ITX, Micro-ATX and ATX motherboards suits a range of system sizes.

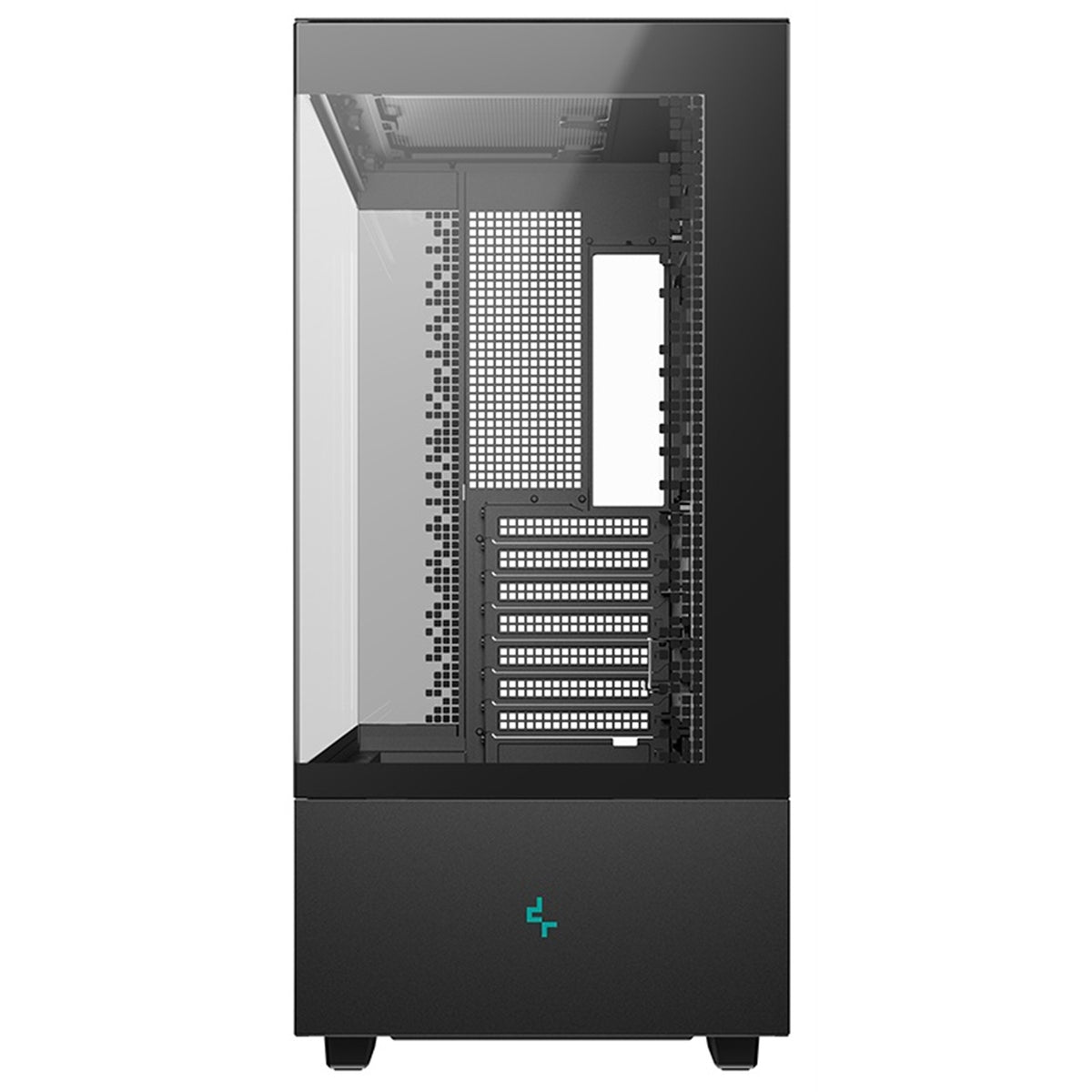

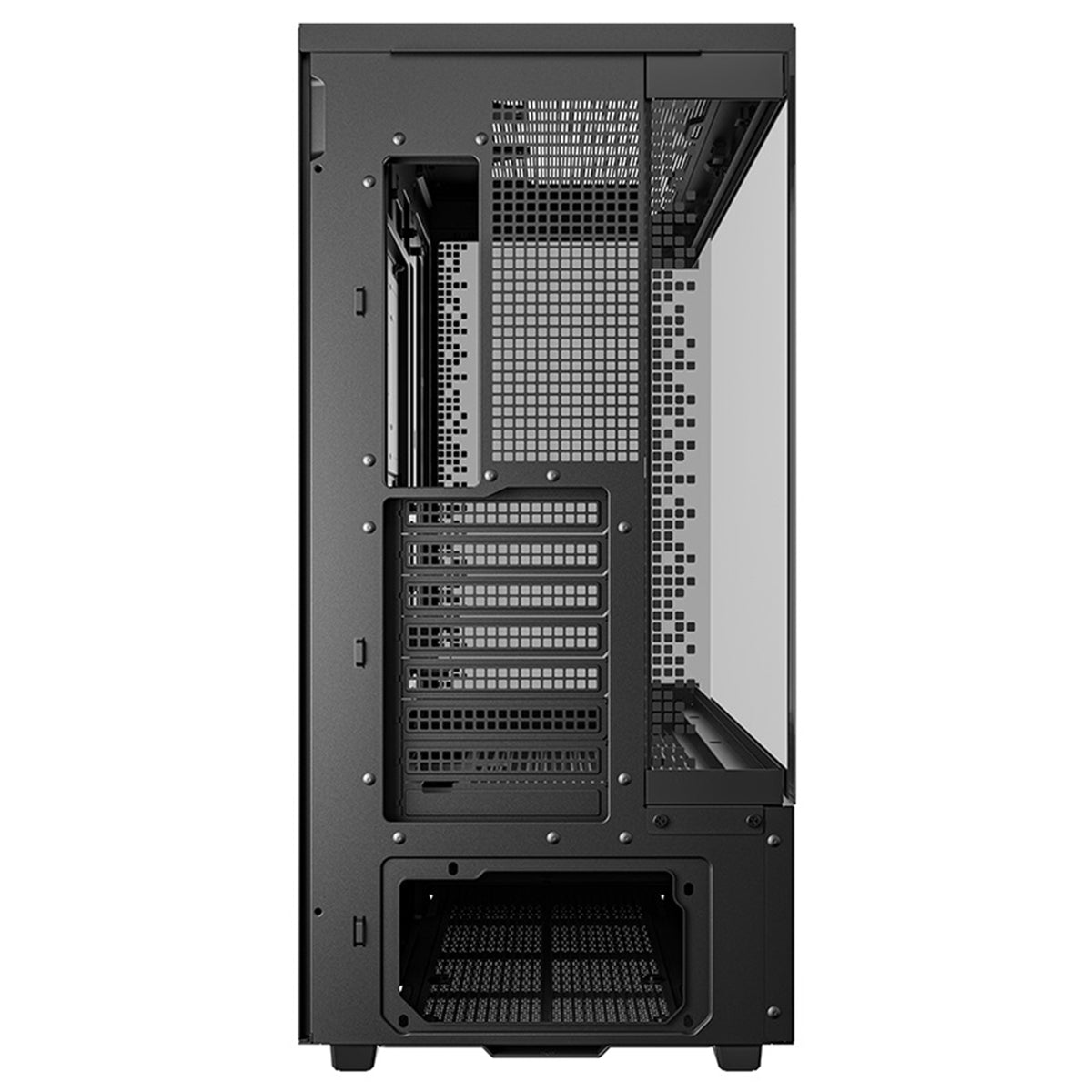

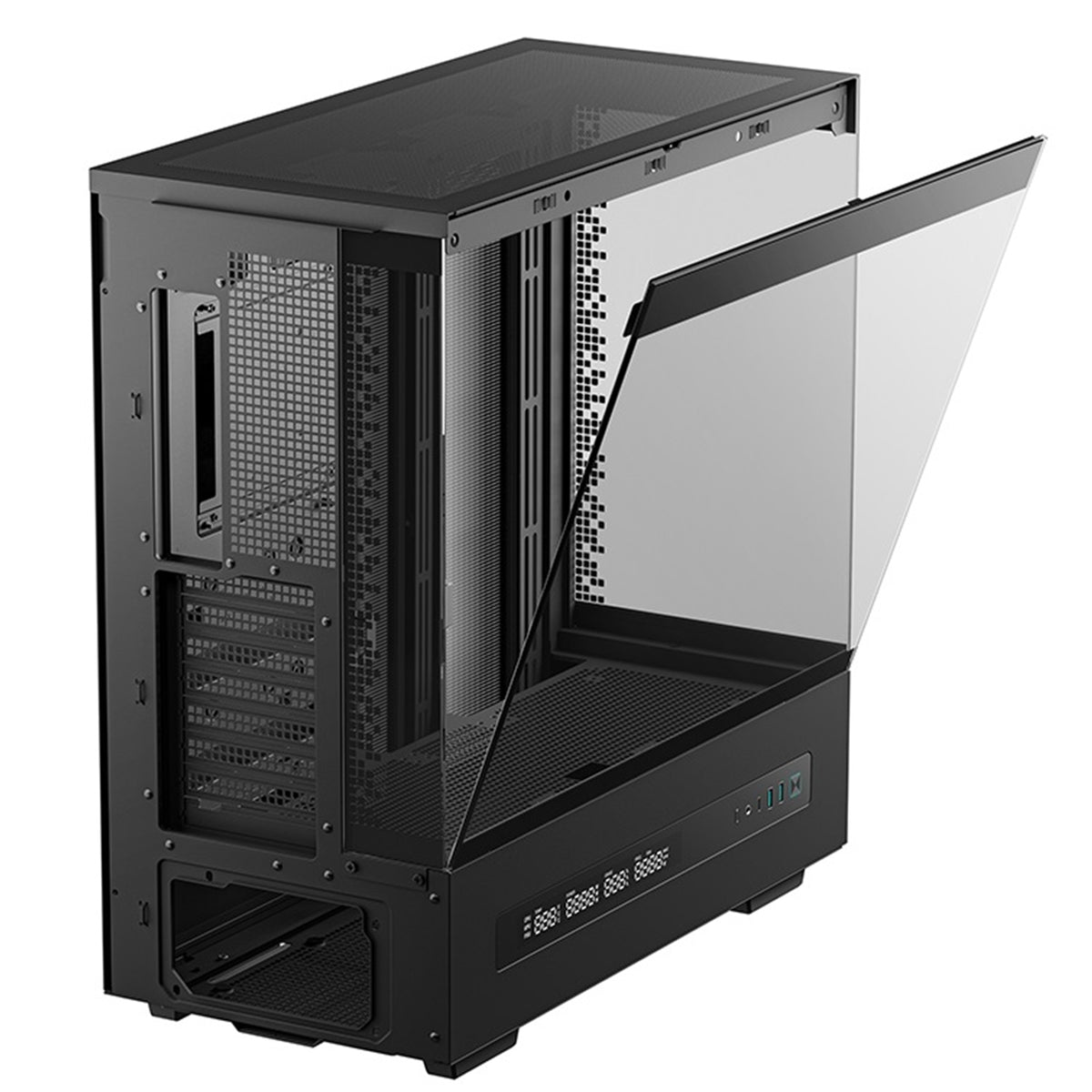

The DeepCool CH690 Digital Black ATX Case is designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.

Specification

Specification Detail
Model Number R-CH690-BKNNA0D-G-1
Case Type Mid-Tower
Motherboard Support Mini-ITX, Micro-ATX, ATX
Dimensions 552mm (L) x 332mm (W) x 589mm (H)
Net Weight 9.8 kg
Materials ABS, SPCC, Tempered Glass
Front I/O Ports 2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic
Drive Bays 1 x 3.5" Drive Bay
2 x 2.5" Drive Bays
Expansion Slots 8
Pre-Installed Fans None
Fan Support Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
PSU Shroud: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Radiator Support Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side: 120mm / 140mm / 240mm / 280mm
PSU Shroud: 120mm / 240mm / 360mm
CPU Cooler Height Limit 182mm
GPU Length Limit 450mm
Power Supply Type ATX PS2 (maximum length: 180mm)
Warranty 1 Year
