DJI O4 Air Unit Pro camera drone part/accessory Camera module

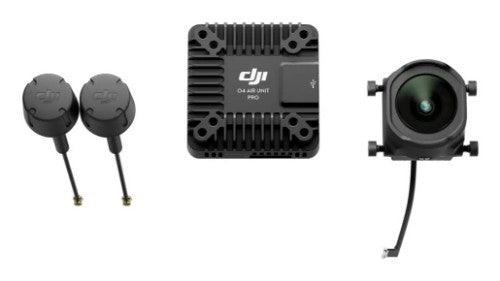

O4 Air Unit Pro, 1/1.3-inch CMOS Sensor

Description

New Heights in Transmission, More Freedom in Flight
The O4 Air Unit Series features O4 transmission with ultra-low latency. 15km transmission and auto frequency selection with the Pro model.

Crisp and Fluid, Visually Striking
The O4 Air Unit Series records 4K/60fps video. H.265 encoding delivers 1080p/100fps transmission for clear, smooth, real-time imagery.

New Racing Mode: Unleashed Speed, Unlimited Fun
The DJI O4 Air Unit Series features a new Racing Mode with 15ms low latency and support for up to 8 aircraft racing at once.

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips
O4 Air Unit: 1/2" CMOS for 4K/60fps video. O4 Air Unit Pro: 1/1.3" CMOS for 4K/120fps video. No action cam needed for stunning ultra-wide footage.

Even in Intense Light, Create With Confidence
The O4 Air Unit Pro works with the DJI Avata 2 ND Filter Set for flexible light intake and shutter speed control, achieving natural motion blur.

Compatible With Canvas Mode: Your Flights, Your Way
The O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings, allowing customization of real-time data and layout.

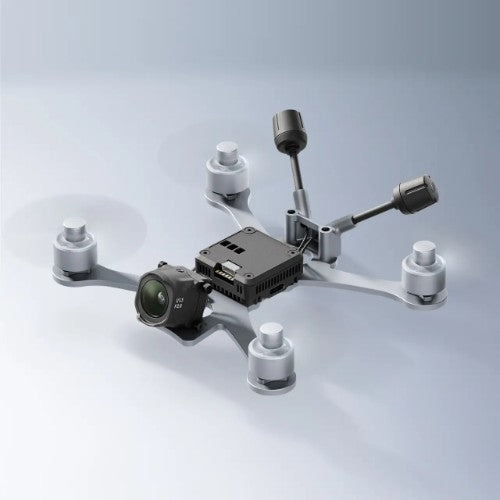

Lightweight Design, Effortless Adaptation
DJI O4 Air Unit features a lightweight design with broad compatibility and fits drone frames of 2″ and smaller, enabling flexible assembly.

Specifications

Features
Product type	Camera module
Brand compatibility	DJI
Product colour	Black
Compatibility	DJI Goggles 3 + DJI FPV Remote Controller 3 DJI Goggles N3 + DJI FPV Remote Controller 3 DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2
Operating temperature (T-T)	-10 - 40 °C
Maximum operating distance	15000 m
Internal storage capacity	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Frequency band	5.17 - 5.25, 5.725 - 5.85 GHz
Antenna length	11 cm
Camera
Optical sensor size	25.4 / 1.3 mm (1 / 1.3")
Field of view (FOV) angle	155°
Maximum video resolution	3840 x 2880 pixels
Maximum frame rate	100 fps
Video formats supported	MP4
Sensor type	CMOS
Power
DC voltage range	7.4 - 26.4 V
