DrayTek ANT-4GE1-K network antenna Omni-directional antenna N-type 6 dBi

Gain (dBi) 4 - 6, VSWR 1.5, N-Female, 50ohm

Key Features

• Omnidirectional Outdoor Aerial
• 4-6 dBi Signal Gain
• Can also be used Indoors
• Improves signal stability and reception
• Suitable for all DrayTek LTE routers
• Wall or Pole mountable (includes fittings)
• 4G, 3G, 2G & LTE Compatible (See band support)
• N-Plug Connector
• Requires N-to-SMA cable (sold separately)

Description

Outdoor 4G Antenna for DrayTek LTE Routers
4G/LTE routers such as the DrayTek Vigor 2862Lac can provide highly resilient connectivity by utilising mobile broadband, either as the main Internet connection or as a backup connection for the building.

The Outdoor 4G Antennas for DrayTek LTE Routers can improve 4G, 3G & LTE signal reception for any DrayTek Vigor LTE router, expanding coverage and improving speeds, by allowing you to locate the antenna in a location which receives a strong signal.

Installation of outdoor antennas enables or improves 4G/LTE connectivity into locations where it’s typically inaccessible. For instance, in a comms cabinet, or in parts of a building that otherwise cannot receive mobile signal, due to building layout or location. Simply placing the antennas physically outdoors normally provides a significant signal boost over what can be achieved within a building, potentially improving speeds through better access to LTE bands and nearby mobile cell towers. The antennae can also be installed inside a building, perhaps just run outside the location/room which has poor coverage.

The Outdoor 4G Antennas for DrayTek LTE Routers support all currently used 4G, 3G and 2G frequency bands from 700MHz to 2.7GHz.

The antennas are Omni-Directional, designed for vertical orientation to receive signal from any nearby mobile cell tower, without requiring careful or sensitive aiming during installation.

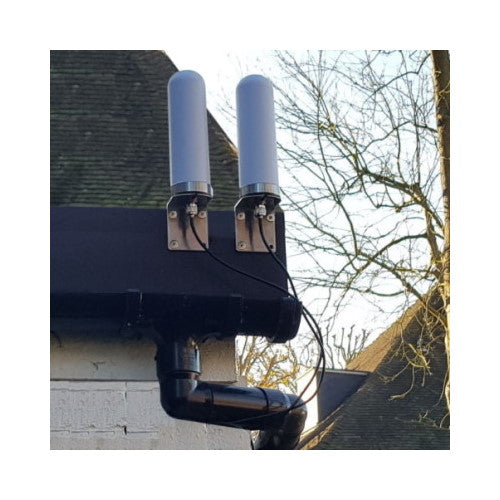

Install a pair of Outdoor 4G Antennas around 0.5m to 1m apart to enable the MIMO (Multiple In, Multiple Out) capability of 4G & LTE wireless networks, further improving speeds and connection resilience. For best results, separate the antennas horizontally in built-up areas and vertically in open areas.

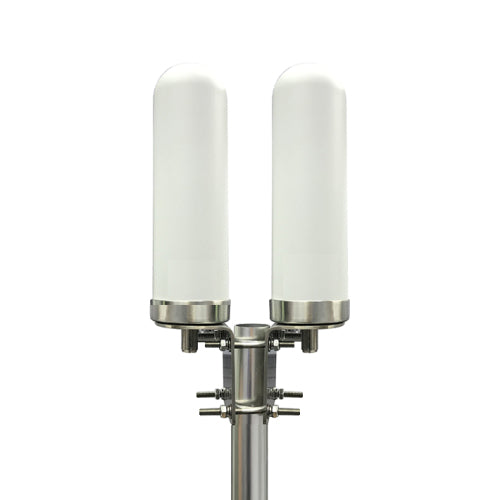

The Outdoor 4G Antennas for DrayTek LTE Routers are weatherproof and ideal for permanent outdoor installation either on a pole or wall. Fixings are provided suitable for either (poles not included).

The N-type connector on each antenna provides a secure and weather resistant antenna connection, which links to the router’s SMA antenna connectors with a suitable cable. Each Outdoor 4G Antenna requires an N-plug to SMA cable for installation, such as our own 5 metre cable (model: CAB-LTEA5, supplied separately). You can use your own shorter or longer cables instead, ensuring the right connectors and always keep cable lengths to a minimum to avoid unncessary signal loss.

Specifications

Performance
Bandwidth note	800, 1800, 2600, 900, 2100, 700, 3400 MHz
Antenna gain level (max)	6 dBi
Frequency band	0 GHz
Vertical beam width	25°
Impedance	50 Ω
Horizontal beam width	360°
Gain	4 / 6 dBi
Features
Housing material	Acrylonitrile butadiene styrene (ABS), Zinc
Connector gender	Female
Antenna type	Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)	1.5
Polarization	Vertical polarization
Product colour	Stainless steel, White
Antenna connector type	N-type
Antenna gain level (max)	6 dBi
Frequency band	0 GHz
Vertical beam width	25°
Impedance	50 Ω
Horizontal beam width	360°
Gain	4 / 6 dBi
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Weight & dimensions
Weight	500 g
Height	32 mm
Diameter	7 mm
Technical details
Antenna gain level (max)	6 dBi
Frequency band	0 GHz
Antenna type	Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)	1.5
Vertical beam width	25°
Polarization	Vertical polarization
Impedance	50 Ω
Horizontal beam width	360°
Gain	4 / 6 dBi
Antenna connector type	N-type
Harmonized System (HS) code	85177100
Colour
Product colour	Stainless steel, White
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
