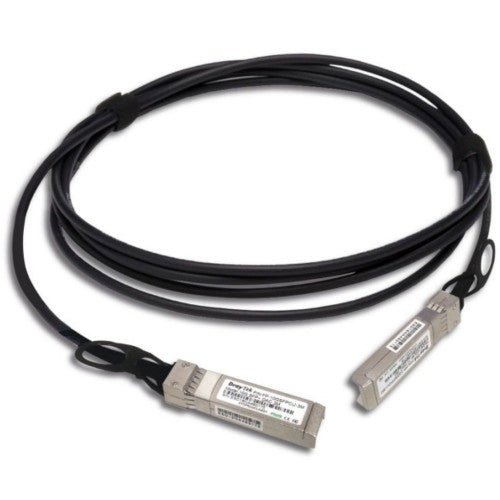

Draytek DCX10 1 Meter SFP+ to SFP+ 10-Gigabit Direct Attach Cable

Description

Use DrayTek DAC-CX10 SFP cables to connect directly to the SFP module port of a DrayTek switch or router, such as the DrayTek VigorSwitch P2500 50-port switch and DrayTek Vigor 3900 router.

The DAC-CX10 cable is a cost effective interlink cable between switches, routers and servers, with throughput from 1 Gigabit per second, up to 10 Gigabits per second depending on the devices being connected.

A Direct Attach Cable or DAC connects SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fiber transceivers, or SFP to RJ-45 transceivers.

This significantly simplifies the connection process and reduces cost, while still ensuring reliable operation. For instance, if both devices support 10 Gigabit transfer rates through SFP+, instead of using two SFP+ Fiber transceivers and optical fiber, simply connect the DAC-CX10-01M cable between the two for an up to 10Gbps link.

The DAC-CX10 is available in 3 Meter and 1 Meter cable length variants, with its cable shielded to protect from nearby electrical interference. The SFP module locks securely into place when fitted into a switch to avoid unintended removal. Remove the DAC-CX10 by pulling the attached pull-tab to unlock it from the SFP module slot.

Key Features:

• Hot-pluggable
• Standard SFP / SFP+ Form Factor
• Compatible with SFP+ MSA specifications
• Compatible with SFF-8431 & SFF8432 specifications
• Power Consumption: Up to 0.2 Watts
• Operating Voltage: 3.3 Volts (supplied by connected devices)
• Operating Temperature Range: 0ºC to 70ºC
• Operating Humidity: 0 to 85% RH (non-condensing)
• Storage Temperature: -40ºC to 85ºC

Compatible with:

• Vigor 2952
• Vigor 3900
• VigorSwitch G1280
• VigorSwitch G2280
• VigorSwitch G2500
• VigorSwitch P1092
• VigorSwitch P1280
• VigorSwitch P2261
• VigorSwitch P2280
• VigorSwitch P2500
