Draytek

DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

SKU VSPQ1070X-K
£106.70
£106.70
Excluding taxes

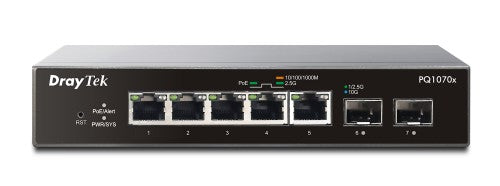

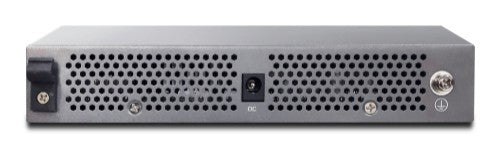

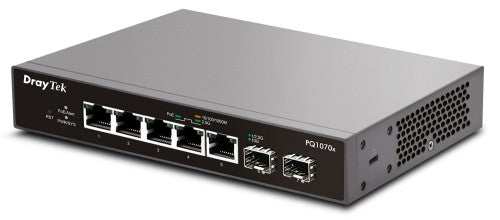

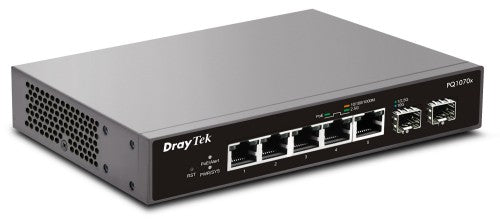

VigorSwitch PQ1070x PoE+ Switch with 5 x 2.5GbE ports & 2 x 10Gbps SFP+ slots

Key Features

  • 5 x RJ-45 2.5 Gigabit Ethernet Ports
  • 2 x SFP+ 10GbE Ports for Uplink / Fibre
  • Compact form factor
  • Wall Mountable
  • Fanless (Silent) Operation
  • Low Power Consumption

Description

VigorSwitch PQ1070x is a 2.5 Gigabit switch with 5 PoE+ 2.5GbE ports (total of 75W output) and 2 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

This compact in size networking switch helps with expanding the network in critical areas where additional fast 2.5GbE interfaces are needed, supported by up to 10Gbps SFP+ uplink interfaces.

Specifications

Management features
Reset button Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L2
Ports & interfaces
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity 5
Network
Full duplex Yes
Port mirroring Yes
Broadcast storm control Yes
10G support Yes
Data transmission
Jumbo frames 10000
Packet buffer memory 8 MB
MAC address table 16000 entries
Switching capacity 65 Gbit/s
Jumbo frames support Yes
Forwarding rate 48.36 Mpps
Number of multicast groups filtered 64
Multicast Listener Discovery (MLD) snooping v1, v2
Security
Loop protection Yes
Multicast features
Number of multicast groups filtered 64
Multicast support Yes
Multicast Listener Discovery (MLD) snooping v1, v2
Design
Wall mountable Yes
Reset button Yes
Product colour Black
Stackable No
LED indicators Yes
Housing material Metal
Rack mounting No
Performance
Firmware upgradeable Yes
Fanless Yes
Packet buffer memory 8 MB
Stackable No
Power
Power consumption (max) 89.6 W
Power supply included Yes
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 5
Total Power over Ethernet (PoE) budget 75 W
Power over Ethernet (PoE) ports quantity 5
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 175 mm
Depth 114 mm
Height 32 mm
Weight 1.16 kg
Packaging content
Quick start guide Yes
Technical details
Product colour Black
Stackable No
Housing material Metal
Firmware upgradeable Yes
Rack mounting No
Memory
Packet buffer memory 8 MB
Indication
LED indicators Yes
Packaging data
Quick start guide Yes
