Draytek

DrayTek VigorAP 905 Dual Band 3000 Mbit/s White Power over Ethernet (PoE)

SKU VAP905-K
£82.50
£82.50
Excluding taxes
VigorAP 905 WiFi 6 AX3000 Mesh Wireless Access Point, 2.5GbE Uplink, 4x additional 1GbE for Wired Connectivity, Desk/Wall Form-factor

Key Features

  • Wi-Fi 6 Mesh Wireless Access Point
  • AX3000 – 11ax Dual Band Wireless
  • WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
  • Power through DC Power Adapter (included)
  • Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*

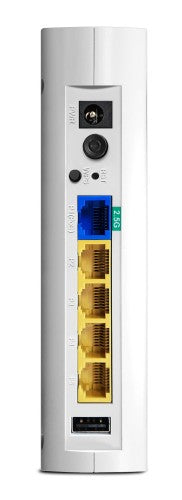

  • 2.5Gb Ethernet Uplink & Four Additional GbE Interfaces
  • Centrally Managed or Standalone Operation
  • Root AP for AP Management

Description

The VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The additional Gigabit Ethernet ports can be used as a mini switch to connect computers or printers. The AP can be mounted on a wall or placed on a desk.

Specifications

Data transmission
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 3000 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Wireless isolation Yes
Auto Wireless Distribution System (WDS) Yes
Syslog Yes
On/off switch Yes
Reset button Yes
Firmware upgradeable Yes
Web-based management Yes
VLAN support Yes
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 3000 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Operating system installed DrayOS
Management features
VLAN support Yes
Syslog Yes
Firmware upgradeable Yes
Web-based management Yes
Command-line interface (CLI) Yes
Access point management Wi-Fi schedule
Features
2.4 GHz Yes
5 GHz Yes
Wireless isolation Yes
VLAN support Yes
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 3000 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Airtime Fairness (ATF) Yes
Maximum data transfer rate (2.4 GHz) 600 Mbit/s
Maximum data transfer rate (5 GHz) 2400 Mbit/s
Number of simultaneously connected devices (max) 256
Wireless meshing Yes
Operating system installed DrayOS
Security
Auto Wireless Distribution System (WDS) Yes
Security algorithms 802.1x RADIUS, SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3, WPS
MAC address filtering Yes
Access Control List (ACL) Yes
Whitelist Yes
Blacklist Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Service Set Identifier (SSID) features Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Protocols
DHCP server Yes
DHCP client Yes
IPv4 & IPv6 features Dual stack IPv4/IPv6
Ports & interfaces
Internal RJ-45 ports quantity 5
USB 2.0 ports quantity 1
DC-in jack Yes
Power
Power consumption (max) 17 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Design
Housing material Plastic
Placement Desk, Shelf, Table, Wall
On/off switch Yes
Product colour White
Reset button Yes
LED indicators Power, USB, WLAN, Wi-Fi
WPS push button Yes
Antenna
Antenna type Internal & external
Antenna direction type Omni-directional
Antenna features Detachable antenna
Technical details
Reset button Yes
Firmware upgradeable Yes
WPS push button Yes
Indication
LED indicators Power, USB, WLAN, Wi-Fi
Software
Access Control List (ACL) Yes
Packaging data
Quick start guide Yes
Mounting kit Yes
AC adapter included Yes
Packaging content
Quick start guide Yes
Mounting kit Yes
AC adapter included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Other features
WPS push button Yes
