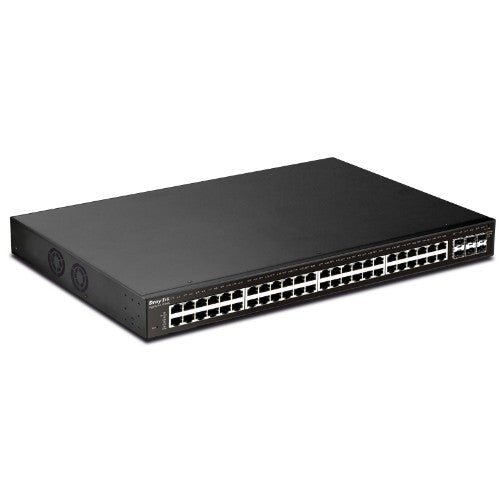

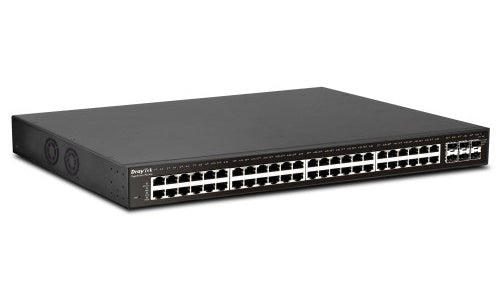

Draytek VSP2540XS-K network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

48 x RJ-45, 6 x SFP+, 10GbE , QoS, 441 x 330 x 45 mm, 5.66 kg

Key Features

• 48 x RJ-45 Gigabit Ethernet Ports with PoE+
• 6 x SFP+ 10GbE Ports for Uplink / Fibre
• PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc
• 400-watt Power-over-Ethernet budget
• 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
• VLAN Routing & Static Route with DHCP server / relay
• Virtual Router Redundancy Protocol
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping & Querying
• IPv4 and IPv6 Support with IP Conflict Prevention
• Hardware Monitor with smart fan control
• Centrally managed or standalone operation
• Console Port

Description

10GbE Gigabit Switch with 48 Gigabit PoE+ Ports & 6 10GbE SFP+ Uplink Ports VigorSwitch P2540xs is a 54 port PoE+ Gigabit L2+ Managed switch with a plethora of management options and enterprise-level features to improve network stability and security for businesses. It has 48 PoE+ (Power over Ethernet) RJ-45 LAN ports and 6 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches. Designed for centralised management, the VigorSwitch P2540xs can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches. High Speed 10 Gigabit SFP+ Uplinks 6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network. Benefits: Easily increase network throughput and meet demanding bandwidth requirements. Manage Centrally or Stand-Alone Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface. Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff. Great Security Features Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information. Benefits: Secure & control access to your network. Advanced Layer 2+ Routing Features Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch. Benefits: Provides a fast and secure bridge between networks. 400W PoE Power Budget Provides power through Ethernet to each of the 48 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working. Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices. IP Camera Management Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems. Benefits: Easily configure, deploy & manage connected IP Cameras.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+/L3
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	6
Fiber ports quantity	6
Fiber optic connector	LC
Console port	RJ-45
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Auto-negotiation	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Number of VLANs	256
Jumbo frames	12
MAC address table	32 entries
Switching capacity	216 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	160.7 Mpps
Optical fiber
Fiber optic connector	LC
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 1000BASE-LX
Performance
Auto-negotiation	Yes
Firmware upgradeable	Yes
Fanless	No
Technical details
Form factor	1U
Product colour	Black
Firmware upgradeable	Yes
Rack mounting	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMPv2, SNMPv3, SSH, SSH-1.5, SSH-2
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	VigorACS, VigorConnect, Vigor Router Switch Management, IPv4 & IPv6 Dual-Stack, (CLI) via SSH/Telnet, OpenVPN Client, SNMP, SNTP, LLDP
Routing protocols	VRRP
Design
Wall mountable	Yes
Reset button	Yes
Form factor	1U
Product colour	Black
LED indicators	Error, PoE
Rack mounting	Yes
Number of fans	1 fan(s)
Indication
LED indicators	Error, PoE
Power
Power consumption (max)	478 W
Power supply included	Yes
AC input voltage	100 - 240 V
Input current	5.5 A
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE) ports quantity	48
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	1631.18 BTU/h
Weight & dimensions
Width	441 mm
Depth	330 mm
Height	45 mm
Weight	5.66 kg
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
