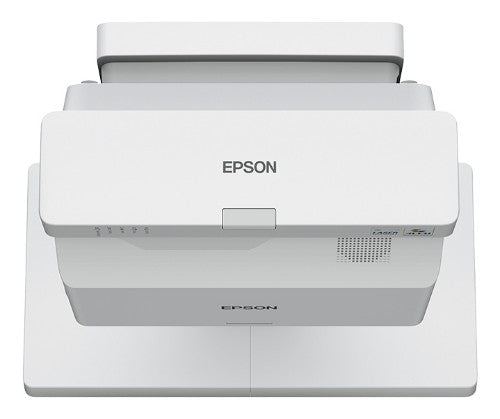

Epson EB-770F

EB-770F

Key Features

• Scalable FHD display for any room: 49-150" UST display for unrestricted viewing (no shadows/reflections)
• Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
• Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
• Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
• Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Reasons To Buy

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Description

Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.


The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.


With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.


Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.


Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Specifications

Projector
Projector native resolution	1080p (1920x1080)
Native aspect ratio	16:9
Screen size compatibility	1524 - 3810 mm (60 - 150")
Contrast ratio (typical)	2500000:1
Keystone correction, vertical	- 3 - 3°
Keystone correction, horizontal	- 3 - 3°
Projector brightness	4100 ANSI lumens
Lamps
Light source type	Laser
Service life of light source	30000 h
Light source
Light source type	Laser
Service life of light source	30000 h
Lens system
Throw ratio	0.25 - 0.35:1
Audio
Number of built-in speakers	1
RMS rated power	16 W
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 Type-B ports quantity	1
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
USB 2.0 ports quantity	0
Composite video in	1
Headphone outputs	1
Component video (YPbPr/YCbCr) in	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Mini-USB 2.0 ports quantity	0
Audio Return Channel (ARC)	No
USB 2.0 Type-A ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	No
Sound emission
Noise level	37 dB
Technical details
Product colour	White
HDCP	No
TV tuner
TV tuner integrated	No
Performance
HDCP	No
Noise level	37 dB
Screen mirroring	Yes
Features
HDCP	No
Noise level	37 dB
High Dynamic Range (HDR) supported	No
Screen mirroring	Yes
Multimedia
Number of built-in speakers	1
TV tuner integrated	No
RMS rated power	16 W
Design
Product colour	White
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Weight & dimensions
Width	356 mm
Depth	395 mm
Height	133 mm
Packaging content
Remote control included	Yes
Cables included	AC
